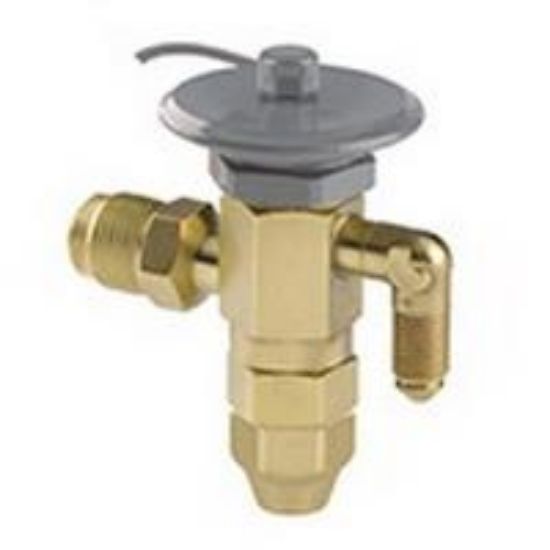

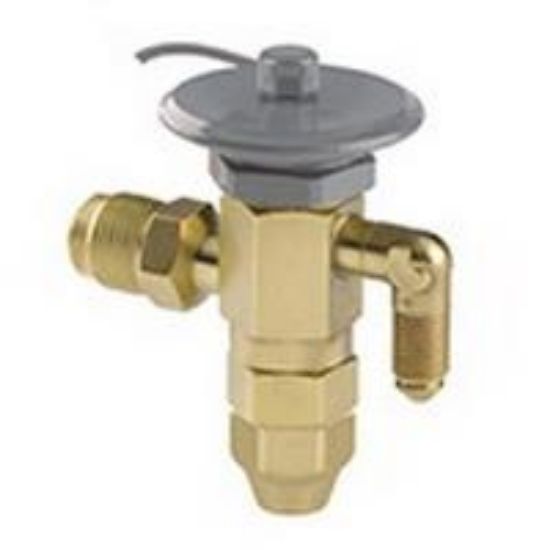

Sporlan 169368 brass type R thermal expansion valve 2 tons 3/8 x 1/2 in. SAE 5 ft. capillary L

Product Description

The Sporlan 169368 is a brass Type R thermal expansion valve designed for R-22 refrigerant systems, offering a 2-ton capacity. It features 3/8 inch x 1/2 inch SAE connections and a 5 ft. capillary length. This valve regulates refrigerant flow by maintaining a nearly constant superheat at the evaporator outlet, suitable for air-conditioning and commercial refrigeration applications. It includes a 1/4 inch SAE external equalizer connection.

• Replaceable thermostatic element with grey epoxy coating.
• 100 mesh inlet strainer integral to fitting.
• 1/4 in. SAE externally equalized design.

Product Highlights

Regulates R-22 refrigerant flow in 2-ton systems with 3/8 x 1/2 inch SAE connections and a 5 ft. capillary.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169368

Technical Specifications

• Inlet/Outlet Size: 3/8 in. x 1/2 in.
• Maximum Pressure: 450 psi
• Capacity: 2 Tons
• Refrigerant Type: R-22
• Material: Brass
• Capillary Length: 5 ft.
• Charge Type: C
• End Type: SAE Flared
• Equalizer Type: External
• Application: Commercial Refrigeration
• Model: RVE-2-C
• Equalizer Connection Size: 1/4 in.
