Sporlan 169366 rve1c 1 ton 3/8 inch x 1/2 inch 5 foot

Product Description

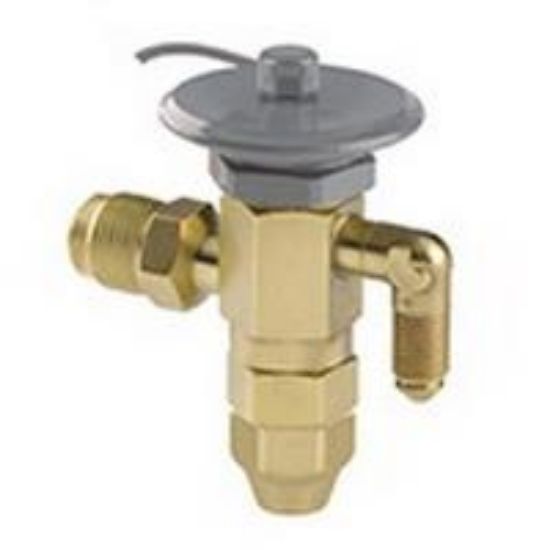

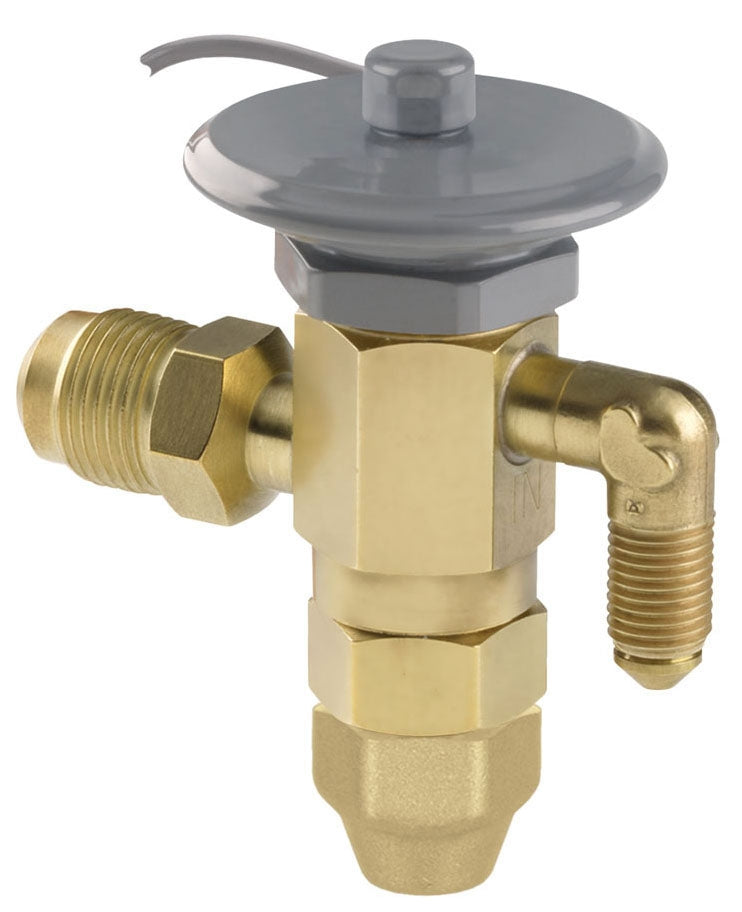

The Sporlan 169366 is a Thermostatic Expansion Valve, externally equalized, designed for applications such as air conditioners, refrigeration, heat pumps, and transportation. It features a nominal size of 3/8 Inch x 1/2 Inch with SAE Flare end connections and a machined brass bar body. This valve is suitable for R22 refrigerant systems, offering a 1 Ton capacity and a 5 Foot capillary tube length.

• Stainless Steel Diaphragm and Welded Element Construction
• Large Flat Diaphragm Permit Precise Valve Control
• Balanced Port Design Provide Excellent Control on Application with Widely Varying Operation Condition

Product Highlights

Externally adjustable with excellent bi-flow control for heat pump applications and a replaceable thermostatic element.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169366

Technical Specifications

• Type: Thermostatic Expansion Valve, Externally Equalized
• Nominal Size: 3/8 Inch x 1/2 Inch
• End Connection: SAE Flare x SAE Flare
• Body Material: Machined Brass Bar
• Seat Material: Brass
• Temperature Rating: -40 to 50 Deg F
• Pressure Rating: 450 PSIG
• Applicable Standard: UL SA-5460, ANSI/ASHRAE 17
• Refrigerant Type: R22
• Thermostatic Charge Type: C
• Element Number: 43
• Capillary Tube Length: 5 Foot
• Capacity: 1 Ton
• Color Code: Green
• Pin/Pushrod Material: Stainless Steel
• Series/Model: R
