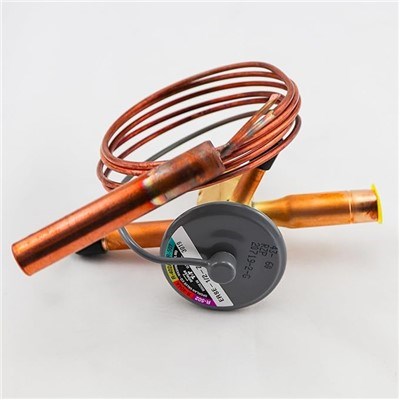

Sporlan 169354 RSE-2-ZP Expansion Valve 2 Ton 5 feet Tube 3/8x1/2x1/4 SAE

Product Description

The SPORLAN 169354 RSE-2-ZP Thermostatic Expansion Valve is designed for various refrigeration applications, including air conditioning, commercial refrigeration (50° to -10°F), and low temperature refrigeration (0° to -40°F). This Type R valve features an external equalizer straight-thru body with a 1/4 inch external equalizer connection. It has a nominal capacity of 2 Tons and is compatible with R-404A refrigerant.

• Type R Thermostatic Expansion Valve for diverse refrigeration systems.
• External equalizer straight-thru body with a 1/4 inch external equalizer connection.
• Suitable for low temperature refrigeration from 0° to -40°F and commercial refrigeration from 50° to -10°F.

Product Highlights

This 2 Ton R-404A expansion valve is ideal for low temperature refrigeration, featuring an external equalizer and a 5-foot capillary tube.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169354

Technical Specifications

• Application: Low Temp Refrigeration
• Capillary Tube Length: 5'
• Connection Type: MFL 90° inlet x MFL outlet
• Equalizer Type: External
• Equalizer Connection: 1/4 SAE
• Inlet x Outlet Connections: 3/8" x 1/2" x 1/4" SAE
• Model: RSE-2-ZP
• Nominal Capacity: 2 Tons
• Refrigerant: R-404A
• Refrigerant Code: ZP
• Manufacturer Part Number: 169354
• Thermostatic Charge Range: 0°F to -40°F
• Element Size: 43
