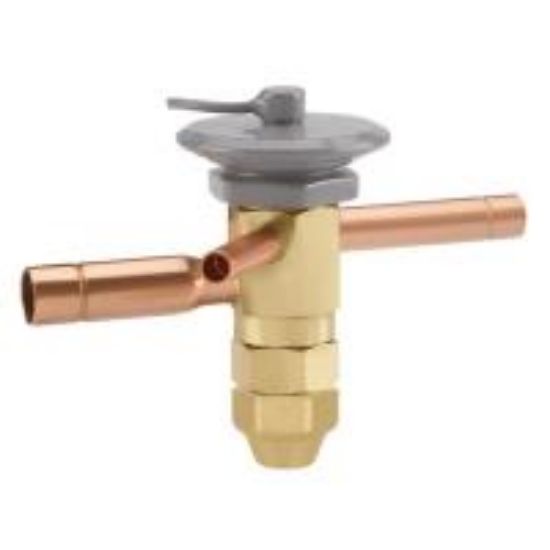

Sporlan 169260 Type ER Thermal Expansion Valve R-404A 3 Tons 1/2 x 5/8 in. ODF

Product Description

The Sporlan 169260 Type ER Thermal Expansion Valve is designed for R-404A refrigerant and has a capacity of 3 tons. It features ODF connections in 1/2 x 5/8 in. size. The valve includes a replaceable thermostatic element and a 100 mesh insertable removable strainer screen. It is externally equalized with a 1/4 in. ODF.

• Replaceable thermostatic element with grey epoxy coating
• ODF connections in a variety of common sizes
• 1/4 in. ODF Externally equalized

Product Highlights

This thermal expansion valve is ideal for refrigeration applications requiring precise refrigerant flow control. Its robust design and replaceable components ensure long-lasting performance.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169260

Technical Specifications

• Replaceable thermostatic element: with grey epoxy coating
• ODF connections: in a variety of common sizes
• Externally equalized: 1/4 in. ODF
• Material: Brass, pin carrier, seat, stainless steel pin, push rod
• Joint: Knife edge to metal joint
• Fittings: ODF copper fittings silver soldered to body
• Strainer screen: 100 mesh insertable removable strainer screen
• Inlet/Outlet: 1/2 in. x 5/8 in.
• Pressure - Maximum: 450 psi
• Tonnage: 3 Tons
• Product Type: Thermal Expansion Valves
• Capacity: 3 Tons
• Refrigerant: R-404A
• Valve Body Type: Type ER
• Equalizer Method: Externally Equalized
• Inlet Connection (In.): 1/2 ODF
• Outlet Connection (In.): 5/8 ODF
• Capillary Length (In.): 60
• Thermostatic Charge: C
• Element Size: 43
• Evaporator Equalizer Size (In.): 1/4 ODF
• Maximum Operating Pressure (PSI): 450
• Nominal Evaporator Temperature: 40 F (5 C)
• Nominal Liquid Temperature: 100 F (37.8 C)
• Nominal Pressure Drop (PSI): 100
• Vendor Name: Sporlan
• URI Part Number: ERSE3C
• Vendor Part Number: 169260
• Description: 3 Ton 1/2" X 5/8" ODF R404A TXV
• Length (In.): 4.75
• Width (In.): 5.00
• Available Thermostatic Charge: C
• Available Thermostatic Charge Code: C
• Connection Size Inlet (In.): 1/2
• Connection Size Outlet (In.): 5/8
• Connection Type: ODF Inlet x ODF Outlet
• Equalizer: External
• Nominal Tons: 3
• Nominal Capacity (Btu/Hr): 36,000
