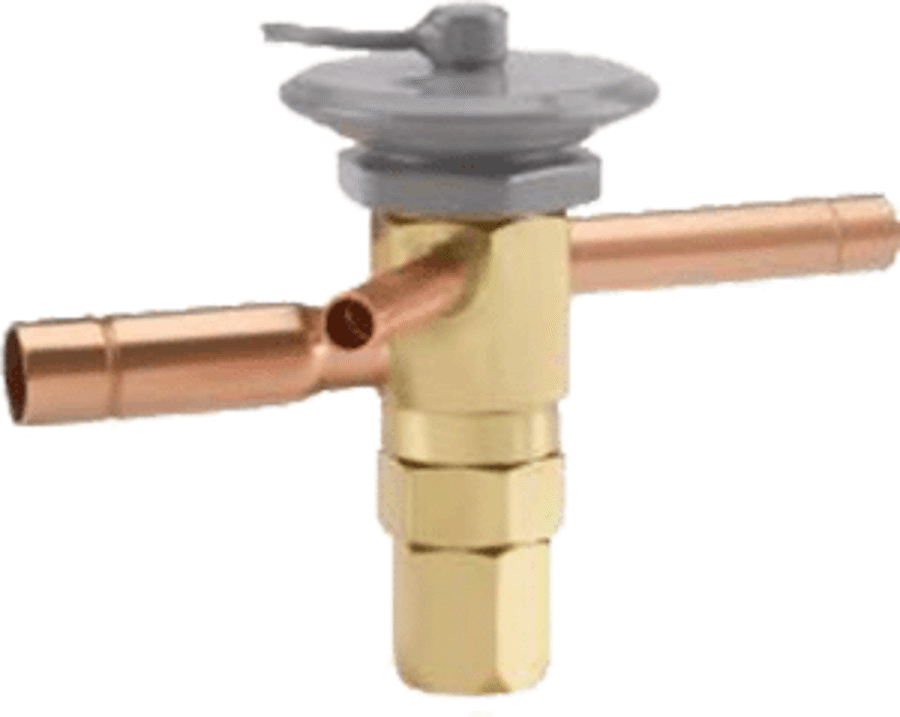

Sporlan 169224 Expansion Valve External 1.5 Ton 5 feet Tube 3/8 x 1/2 x 1/4 ODF ERSE1-1/2C

Product Description

Sporlan 169224 is a thermostatic expansion valve (TXV) designed for refrigeration systems, rated nominally at 1.5 tons. The valve is externally equalized and uses ODF inlet and outlet connections with a 5 foot capillary. It is configured for R-404A and is listed with compatibility for R-408A and R-507 in some references. The unit features a replaceable thermostatic element and a small brass body for field serviceability.

• Thermostatic expansion valve (TXV), externally equalized, nominal capacity 1.5 ton
• ODF connections: 3/8 in. inlet x 1/2 in. outlet with 1/4 in. equalizer and 5' capillary
• Small brass body with replaceable thermostatic element and epoxy-coated element

Product Highlights

Externally equalized TXV for R-404A (also listed for R-408A and R-507), 1.5 ton capacity, 3/8 x 1/2 x 1/4 ODF connections, 5' capillary, replaceable thermostatic element.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169224
• Country of Origin: Unknown

Technical Specifications

• Brand: Sporlan
• MPN: 169224
• Model: ERSE1-1/2C
• Type: Thermostatic expansion valve (TXV)
• Refrigerant: R-404A, R-408A, R-507
• Capacity: 1.5 Ton (nominal)
• Equalizer: External
• Connection: 3/8 in. inlet x 1/2 in. outlet x 1/4 in. equalizer (ODF)
• Connection Inlet Size: 3/8 in.
• Connection Outlet Size: 1/2 in.
• Equalizer Connection Size: 1/4 in.
• Capillary Length: 5 ft
• Thermostatic Charge: C
• Body Material: Brass
• Element Coating: Gray epoxy coating on thermostatic element
