Sporlan 169223 Txv 1.5 Ton R404A 3/8 X 1/2 Inch Odf

Product Description

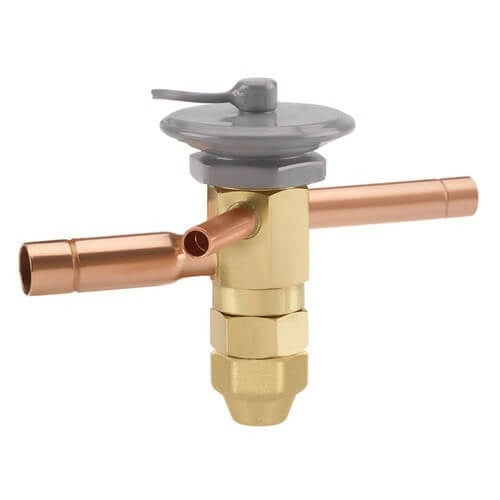

The SPORLAN 169223 is a Type ER thermostatic expansion valve (TXV) rated at 1.5 tons (18,000 BTU/h) for use with R404A refrigerant. It features a small brass bar body with a replaceable thermostatic element, balanced port construction, and external adjustment. The inlet connection is 3/8 inch ODF and the outlet is 1/2 inch ODF, with solder-type connections on both ends. A 50-mesh insertable strainer is included. Maximum operating pressure is 450 psi. Licensed HVAC technicians install this valve as part of refrigerant system service or evaporator coil replacement work.

This valve is designed for refrigeration and air conditioning systems operating on R404A refrigerant. It is rated at a nominal evaporator temperature of 40 degrees F and a nominal liquid temperature of 100 degrees F, with a nominal pressure drop of 100 psi. The externally equalized design suits applications where evaporator pressure drop is a factor. The Z thermostatic charge and element size 43 support stable superheat control across typical operating conditions. The 60-inch capillary length provides flexibility in bulb placement during installation.

Key Features

• 1.5-ton (18,000 BTU/h) nominal capacity rated for R404A refrigerant
• Type ER brass bar body with replaceable thermostatic element
• Balanced port construction with external adjustment capability
• 3/8 inch ODF inlet and 1/2 inch ODF outlet with solder connections
• Externally equalized with 1/4 inch ODF equalizer connection
• 50-mesh insertable strainer and 60-inch capillary length included

Compatibility

Designed as an OEM-style replacement TXV for R404A refrigeration and air conditioning systems requiring a Type ER externally equalized valve with 3/8 inch x 1/2 inch ODF solder connections.

Installation Notes

Installation should be performed by an EPA Section 608 certified HVAC technician. Recover all refrigerant and relieve system pressure before opening any refrigerant circuit. Use a nitrogen purge during brazing to prevent oxide scale formation inside the valve body and refrigerant lines. Mount the sensing bulb securely to the suction line per the valve manufacturer's bulb placement guidelines to ensure accurate superheat control.

Technical Specifications

• Nominal Capacity: 1.5 tons (18,000 BTU/h)
• Refrigerant: R404A
• Nominal Evaporator Temperature: 40 degrees F (5 degrees C)
• Nominal Liquid Temperature: 100 degrees F (37.8 degrees C)
• Nominal Pressure Drop: 100 psi
• Maximum Operating Pressure: 450 psi
• Inlet Connection: 3/8 inch ODF
• Outlet Connection: 1/2 inch ODF
• Equalizer Connection: 1/4 inch ODF
• Equalizer Method: Externally Equalized
• Capillary Length: 60 inches
• Thermostatic Charge: Z
• Element Size: 43
• Valve Body Type: Type ER
• Body Material: Brass
• Strainer Type: 50 Mesh Insertable
• Manufacturer: Parker Hannifin Corporation

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169223
