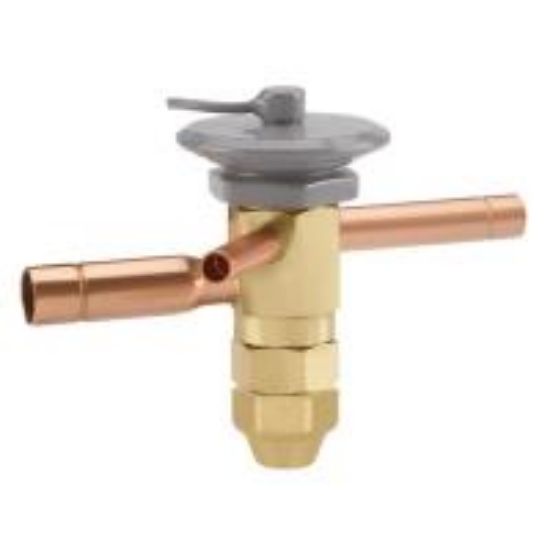

Sporlan 169217 Type ER Thermal Expansion Valve 1 Ton (3/8 x 1/2 ODF) NCO-169217

Product Description

The Sporlan 169217 Type ER thermal expansion valve (TXV) is a 1 ton, externally equalized valve designed for R-404A refrigeration and air conditioning systems. It features 3/8 in. x 1/2 in. ODF connections with a 5 ft. capillary, a replaceable thermostatic element, and a 50-mesh insertable removable strainer. Construction includes an orange brass body, brass pin carrier and seat, and stainless steel pin and push rod, rated to 450 psi.

• Externally equalized Type ER TXV for R-404A with 1/4 in. ODF external equalization
• 3/8 in. x 1/2 in. ODF connections with 5 ft. (60 in.) capillary and 50-mesh removable strainer
• Brass body and fittings with stainless steel pin/push rod, replaceable thermostatic element, maximum working pressure 450 psi

Product Highlights

Externally equalized 1 ton Type ER TXV for R-404A; 3/8 x 1/2 ODF connections; 5 ft capillary; replaceable element; 450 psi max

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 169217

Technical Specifications

• Brand: Sporlan
• Manufacturer Part Number: 169217
• Alternate Part Number: NCO-169217
• Product Type: Thermostatic expansion valve (TXV)
• Model: Type ER
• Refrigerant: R-404A
• Capacity: 1 Ton
• Connections: 3/8 in. x 1/2 in. ODF
• Capillary Length: 5 ft. (60 in.)
• External Equalization: Externally equalized (1/4 in. ODF external equalization)
• Maximum Working Pressure: 450 psi
• Strainer: 50 mesh insertable removable strainer screen
• Thermostatic Element: Replaceable thermostatic element (grey epoxy coated)
• Body Material: Brass
• Internal Materials: Brass pin carrier and seat; stainless steel pin and push rod
• Fittings: ODF copper fittings (silver soldered to body)
• Application: Refrigeration and air conditioning; HVAC/R systems
