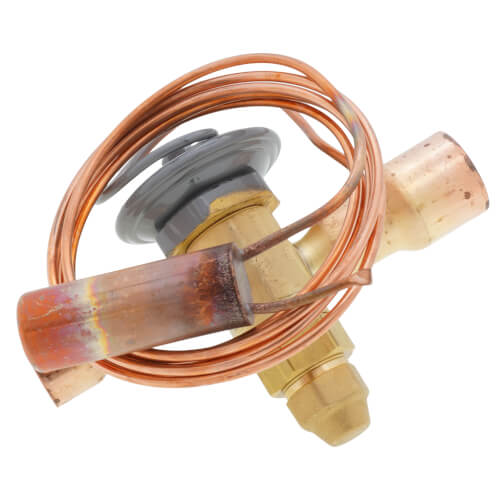

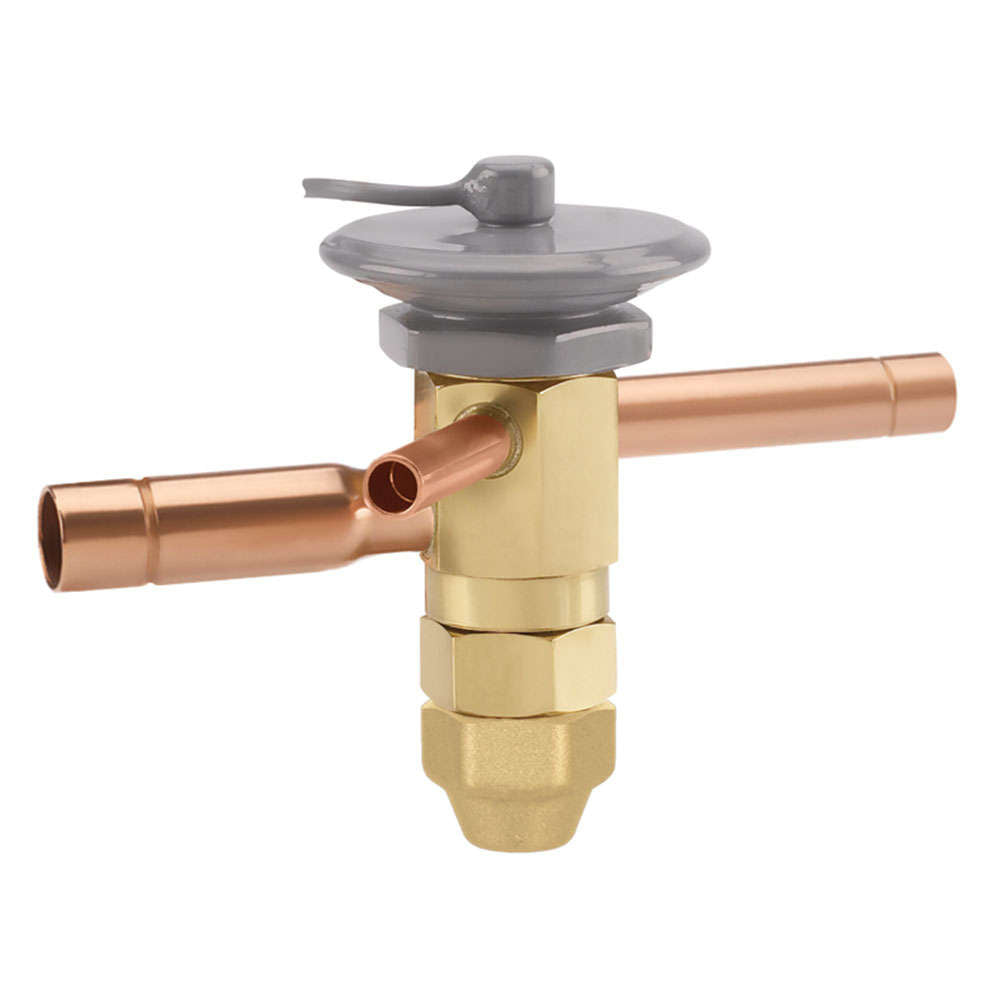

Sporlan 168753 ERVE-4-GA Thermal Expansion Valve 3/8 inch x 1/2 inch ODF w/ 60 inch Capillary 4 Ton

Product Description

The Sporlan ERVE-4-GA Thermal Expansion Valve is engineered to optimize refrigeration and air conditioning systems. This valve, designed by Sporlan, a leader in HVAC components, features robust brass bar stock construction with extended ODF connections.

• Equipped with a 60 inch capillary length for flexible installation.
• Supports an evaporator equalizer size of 1/4 inch ODF.
• Rated for a maximum working pressure of 450 psi, ensuring reliability in various operating conditions.

Product Highlights

Designed to enhance the efficiency of HVAC systems, this valve operates effectively across a wide range of temperatures and pressures. It features externally equalized connections and is suitable for R-22 refrigerant type applications.

Product Information

Standard Information

• Refrigerant Type: R-22
• Application: Air Conditioning

Technical Specifications

• Inlet Size: 3/8 inch ODF
• Outlet Size: 1/2 inch ODF
• Equalizer Method: External
• Capillary Length: 60 inches
• Nominal Capacity: 4 Ton
• Element: 43
