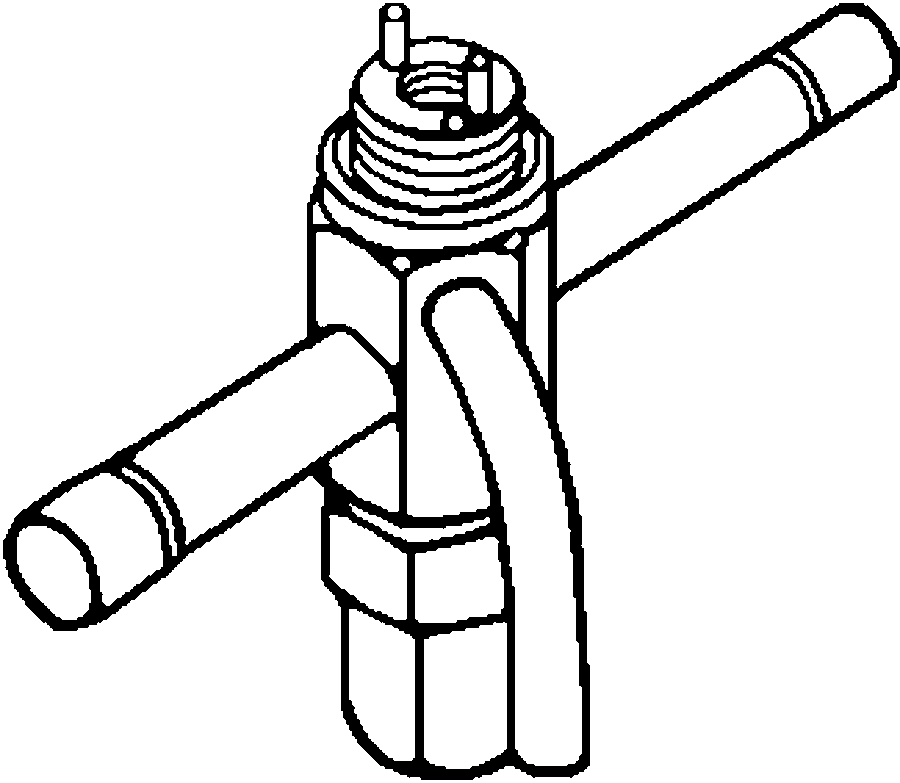

Sporlan 168150 TEV EQE Body, 3/8 ODF x 1/2 ODF 60 Tube A/C Refrigeration

Product Description

The Sporlan 168150 TEV EQE Body is designed for efficient temperature control in various refrigeration applications. This part features connection sizes of three eighths inch and one half inch for optimal fit with standard systems.

• Includes externally adjustable replaceable brass body.
• Compatible with air conditioning and commercial refrigeration systems.
• Supports low-temperature refrigeration from zero degrees to negative forty degrees Fahrenheit.

Product Highlights

This thermostatic expansion valve body is essential for maintaining optimal refrigerant flow and system efficiency.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 168150

Technical Specifications

• Size: 3/8 x 1/2 x 1/4
• Material: Brass
• Connection Ends: ODF
• Equalizer: External
• Port Size: 1/4
• Length: 4.3 inches
• Width: 3.8 inches
• Height: 3.0 inches
• Maximum Operating Pressure: Charges from zero degrees to negative forty degrees Fahrenheit
