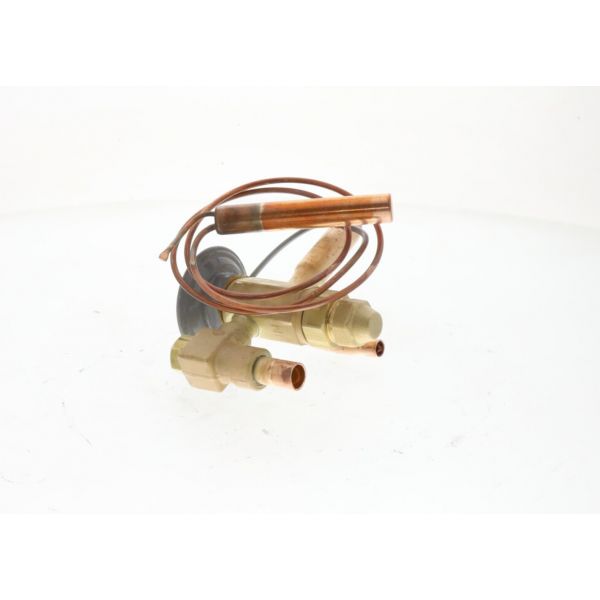

Sporlan 168081 SQE-3-1T-SC Thermostatic Expansion Valve

Product Description

The Sporlan 168081 SQE-3-1T-SC is a thermostatic expansion valve suitable for commercial refrigeration tasks. This valve comes with a three-eighths ODF inlet and a half-inch ODF outlet for efficient fluid flow. It features an externally equalized design and includes a capillary tube that measures sixty inches in length. The valve is compatible with R-404A and R-507 refrigerants and operates at a maximum pressure of four hundred fifty psi.

• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Maximum Operating Pressure: 450 psi

Product Highlights

This thermostatic expansion valve is ideal for a variety of commercial refrigeration applications, ensuring reliable performance and enhanced system efficiency.

Product Information

Standard Information

• Model Number: SQE-3(1T)-SC
• Application: Commercial Refrigeration

Technical Specifications

• Capillary Tube Length: 60 inches
• Refrigerant Type: R-404A/R-507
• Nominal Capacity: 1 ton
• Equalizer Method: Externally Equalized
• Strainer Type: 100 Mesh Removable
• Inlet Connection Size: 3/8
• Outlet Connection Size: 1/2
