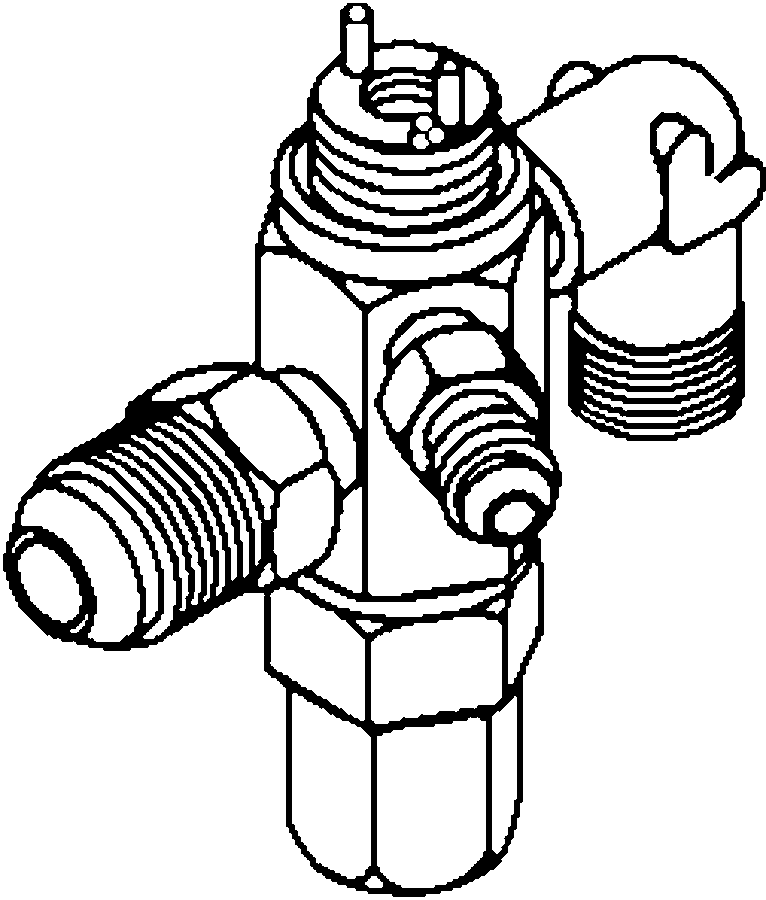

Sporlan 168016 QE Body, TEV 1/4 x 1/2 SAE External Equalizer Conventional Port Elbow Inlet

Product Description

The Sporlan 168016 is a thermostatic expansion valve designed for refrigeration applications. This model features a conventional port and has an elbow inlet for flexibility in installation. It is compatible with various refrigerant systems and is suitable for air conditioning, commercial refrigeration, and low-temperature refrigeration tasks.

• Includes an externally adjustable replaceable brass body
• Ideal for both commercial and residential refrigeration
• Supports maximum operating pressure (MOP) of 0°F to -40°F

Product Highlights

This valve's design allows for efficient temperature control and refrigerant flow, making it a reliable choice for HVAC technicians and refrigeration experts.

Product Information

Standard Information

• Brand: Sporlan
• Part Number: 168016

Technical Specifications

• Size: 1/4 x 1/2 x 1/4
• Material: Brass
• Connection Ends: SAE
• Equalizer: External
• Port Size: 1/4
• Length: 4.3 inches
• Width: 2.9 inches
• Height: 3.5 inches
• Item Class: TEV-Q
• Pieces Per Case: 24
