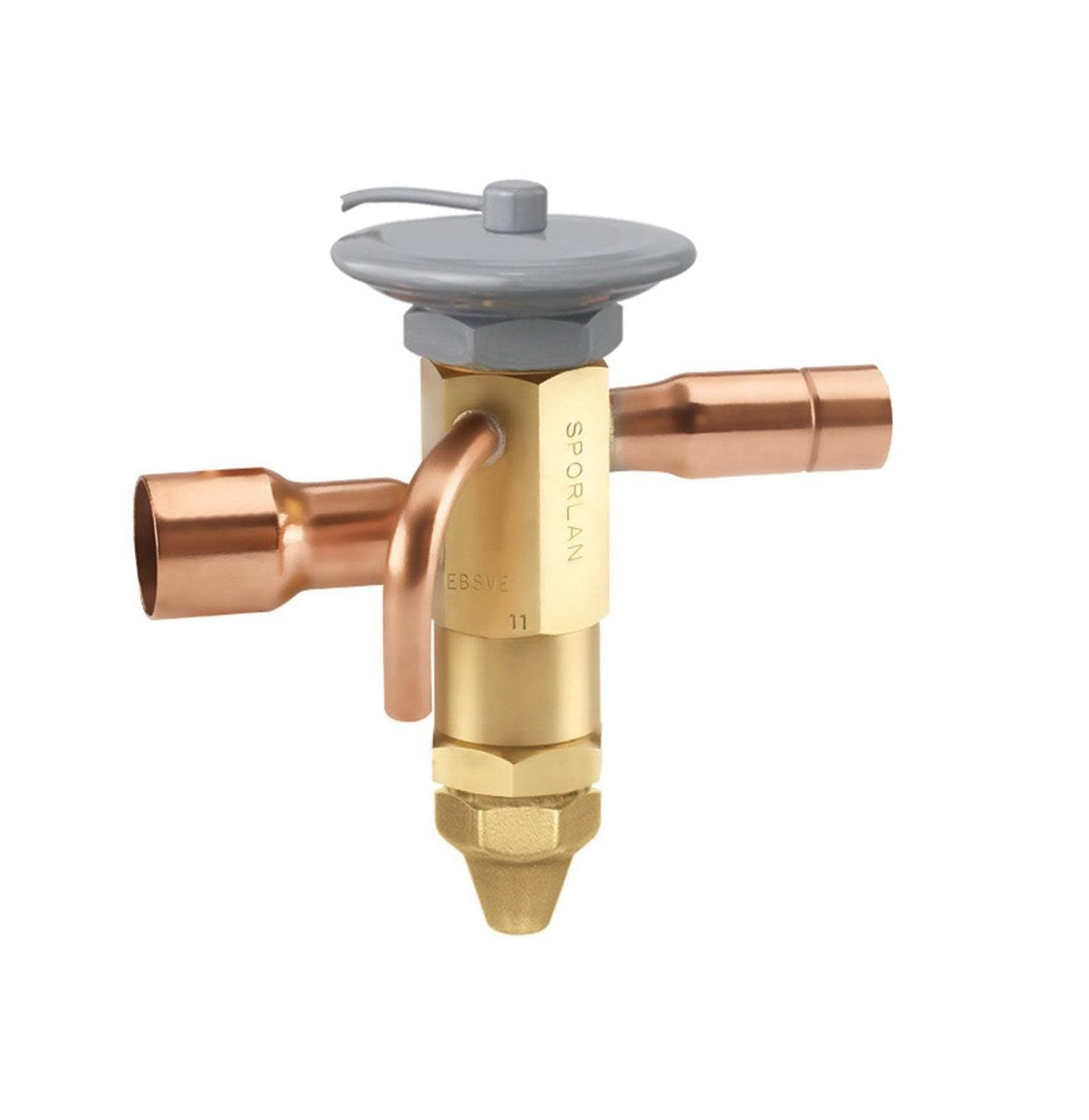

Sporlan 163560 Expansion Valve Balanced Port R22 Family 8 Tons C Charge

Product Description

The Sporlan 163560 expansion valve is designed for refrigeration and air conditioning systems. It features a brass bar body construction and balanced port design for effective operation. This valve works with refrigerants R22, R407A, and R407C. It is appropriate for applications that experience varying conditions.

• Brass bar body construction
• Balanced port design
• Extended ODF connections

Product Highlights

Product Information

Standard Information

• Vendor Name: Sporlan
• URI Part Number: EBSVE8C

Technical Specifications

• MPN: 163560
• Available Thermostatic Charge: +50°F to -10°F
• Capillary Length: 5 ft
• Connection Size Inlet: 5/8 inches
• Connection Size Outlet: 7/8 inches
• Connection Type: ODF Solder
• Element Size: 83
• Equalizer: External
• Nominal Tons: 8
• Overall Height: 5.22 inches
• Overall Width: 5.01 inches
• Refrigerant: R22, R407A, R407C
• Body Material: Brass
• Charge Type: Type C
• Equalizer Size: 1/4 inches ODF
• Pressure Rating: 450 psi
• Seat Material: Brass
• Strainer Type: 12 Mesh Permanent
