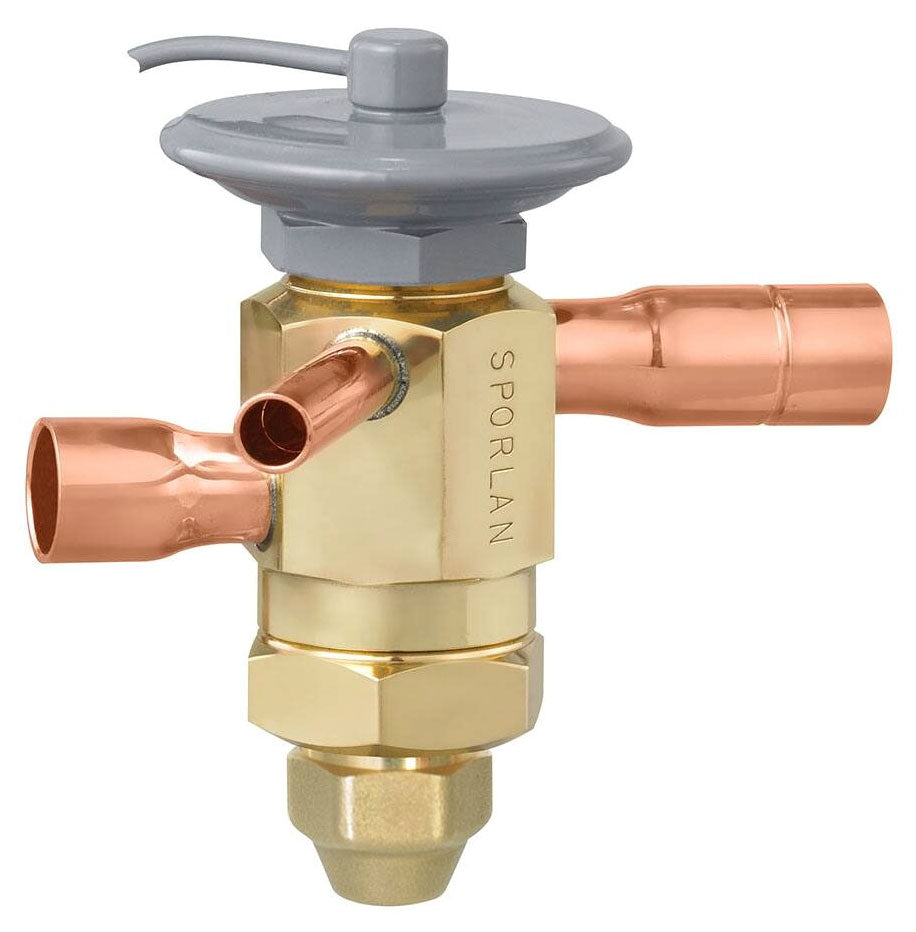

Sporlan 151492 Thermostatic Expansion Valve 700 PSI for 5 Ton Units

Product Description

Explore the Sporlan 151492 Thermostatic Expansion Valve, an essential component tailored for 5 ton air conditioning units and heat pumps. Designed with efficiency in mind, this valve adjusts externally and maintains a balanced port for optimal system performance.

• Robust brass body, suited for 700 PSI operating pressure.
• Features a 100 mesh removable strainer and a 30 inch capillary tube.
• Suitable for R-410A refrigerant with a GA thermostatic charge.

Product Highlights

This valve ensures reliable operation across a wide range of temperatures, from 40 degrees Fahrenheit at the evaporator to 100 degrees Fahrenheit in liquid conditions. Its internal check valve promotes exceptional functionality in both cooling and reverse flow applications.

Product Information

Standard Information

• Manufacturer: Sporlan
• UPC: 68747248050
• UNSPSC: 40141612

Technical Specifications

• Type: Externally Adjustable, Balanced Port
• End Connection: ODF x ODF
• Body Material: Brass
• Pressure Rating: 700 PSI
• Nominal Size: 1/2 Inch x 1/2 Inch
• Temperature Rating: 40 Deg F (Evaporator), 100 Deg F (Liquid)
