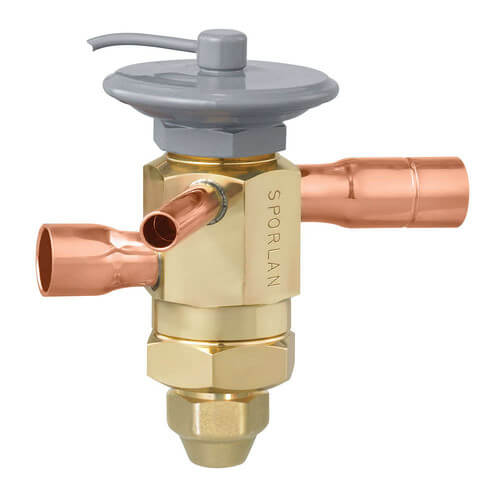

Sporlan 151366 RCZE-3-GA Thermal Expansion Valve 3 Ton R410A

Product Description

The Sporlan 151366 RCZE-3-GA Thermal Expansion Valve is a precision device designed to regulate the flow of refrigerant in HVAC systems, specifically using R-410A. Manufactured by Sporlan, a leader in the industry, this valve is essential for maintaining efficient operation and temperature control in air conditioning applications.

• Optimized for 3-ton systems, ensuring compatibility and efficiency.
• Features a 30-inch capillary length for flexible installation.
• Incorporates bi-directional flow for versatile applications.

Product Highlights

This thermal expansion valve facilitates the precise control of refrigerant, which is critical in achieving optimal air conditioning performance. It's designed primarily for systems using R-410A refrigerant, aligning with current HVAC standards and requirements.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 151366

Technical Specifications

• Refrigerant Type: R-410A
• Nominal Capacity: 3 ton
• Inlet Connection: 3/8 inch ODF
• Outlet Connection: 1/2 inch ODF
• Equalizer Method: Externally Equalized
• Capillary Length: 30 inches
• Strainer Type: 100 Mesh Removable
• Valve Option: Internal Check Valve
