Product Description

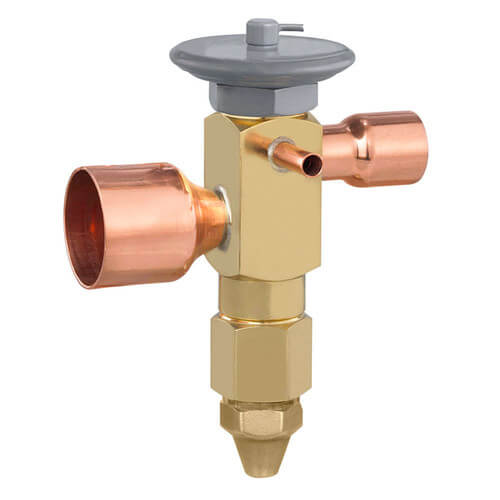

The Sporlan 124441 Thermal Expansion Valve is designed for robust performance in commercial air conditioning and refrigeration applications. This valve facilitates efficient thermal expansion control in systems utilizing refrigerants such as R-422D, R-22, and R-407C. The body of the valve is constructed from high-quality brass, providing a balance ported design that ensures stability and reliability in HVAC systems.
- Robust brass body with ODF connections for easy installation.
- Externally equalized with a 120 inches capillary length.
- Designed for use in systems with capacities ranging from 15 to 70 tons.
Product Highlights
This Thermal Expansion Valve features adjustable superheat settings and a replaceable power element, ensuring long-term usability and performance. The balance port design effectively minimizes the impact of pressure drop across the valve, enhancing operational accuracy.
Product Information
Technical Specifications
-
Refrigerant Type: R-422D, R-22, R-407A, R-407C
-
Application: Air Conditioning
-
Connection Type: ODF
-
Inlet Size: 7/8 inches
-
Outlet Size: 1-1/8 inches
-
Capillary Length: 120 inches
-
Nominal Capacity: 15 Ton
-
Equalizer Type: External
