Sporlan 124303 Txv 20 Ton R-22 7/8 X 1 3/8 Inch

Product Description

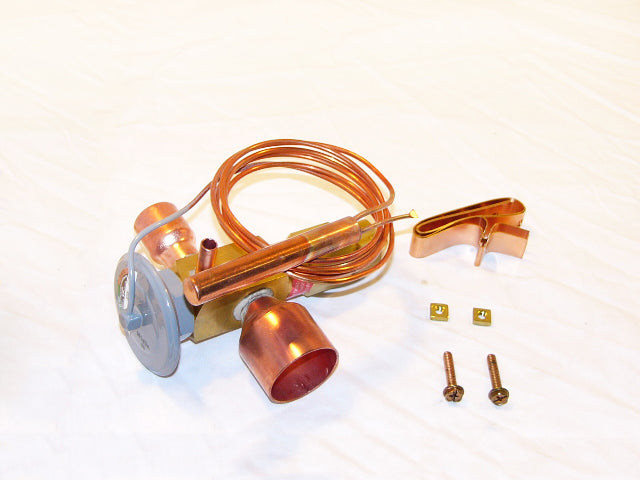

The SPORLAN 124303 is a thermostatic expansion valve (TXV) designed to regulate refrigerant flow in R-22 cooling systems rated at 20 tons of capacity. The valve meters liquid refrigerant entering the evaporator, maintaining the correct superheat to protect the compressor and maximize system efficiency. It features a 7/8-inch inlet connection and a 1 3/8-inch outlet connection, along with a 5-foot capillary tube for remote bulb placement. Licensed HVAC technicians working on medium-to-large R-22 systems rely on this valve as a precision metering device during system service or component replacement.

This TXV is suited for commercial and light-industrial refrigeration or air conditioning systems charged with R-22 refrigerant at a 20-ton load. The 5-foot capillary gives technicians adequate reach for proper remote bulb placement on the suction line, which is critical to accurate superheat sensing. This valve is appropriate for applied systems where the evaporator and expansion device are installed in close but not immediate proximity.

Key Features

• Rated for R-22 refrigerant at 20 tons of cooling capacity
• 7/8-inch inlet by 1 3/8-inch outlet connection sizing
• 5-foot capillary tube for remote bulb installation flexibility
• Thermostatic control maintains proper evaporator superheat
• Designed for commercial and light-industrial cooling applications

Compatibility

Designed as an OEM-style thermostatic expansion valve replacement for R-22 refrigerant systems with 20-ton evaporator loads and matching 7/8-inch by 1 3/8-inch refrigerant line connections.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerants under applicable EPA Section 608 regulations. Recover all refrigerant and relieve system pressure before removing the existing valve. Mount the remote bulb securely on the suction line at the correct clock position per the system manufacturer's guidance, using the full 5-foot capillary to reach the sensing location. Leak-check all connections before recharging and verify superheat readings at startup.

Technical Specifications

• Refrigerant: R-22
• Capacity: 20 Ton
• Inlet Connection: 7/8 inches
• Outlet Connection: 1 3/8 inches
• Capillary Tube Length: 5 feet
• Valve Type: Thermostatic Expansion Valve (TXV)

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 124303
