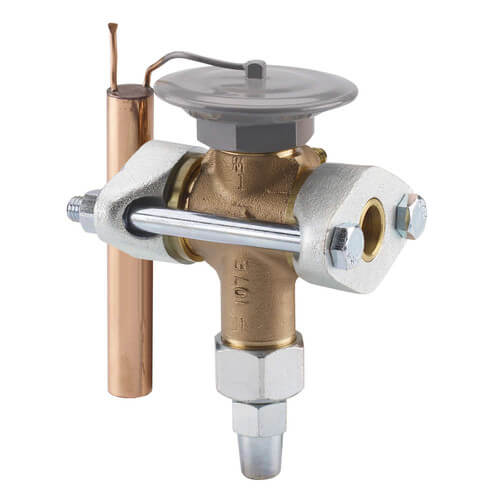

SPORLAN 120486 MVE-26-GA 26 Ton Thermal Expansion Valve (SIZE 7/8 inch x 1-1/8 inch)

Product Description

The Sporlan MVE-26-GA Thermal Expansion Valve, designed for robust HVAC applications, offers precise control of refrigerant flow. It features a 7/8 inch ODF inlet and a 1-1/8 inch ODF outlet, suitable for systems with up to 26 tons capacity, utilizing refrigerant R-22. This valve includes a 60-inch capillary and an external equalizer for enhanced functionality.

• Externally equalized with adjustable superheat settings.
• Includes a removable 12 mesh inlet strainer to protect against debris.
• Designed for a working pressure up to 400 psi, suitable for commercial and industrial AC systems.

Product Highlights

The valve's bronze body and flange connections ensure durability and leak-free performance. It is also equipped with a replaceable power element allowing for easy maintenance and long-term usage.

Technical Specifications

• Refrigerant Type: R-22, R-407A, R-407C, R-422D
• Application: Air Conditioning
• Thermostatic Charge: GA
• Capacity: 26 Ton
• Inlet Connection: 7/8 inch ODF
• Outlet Connection: 1-1/8 inch ODF
• Equalizer Method: Externally Equalized
• Capillary Length: 60 inches
