Sporlan 120458 thermostatic expansion valve type m 5 feet

Product Description

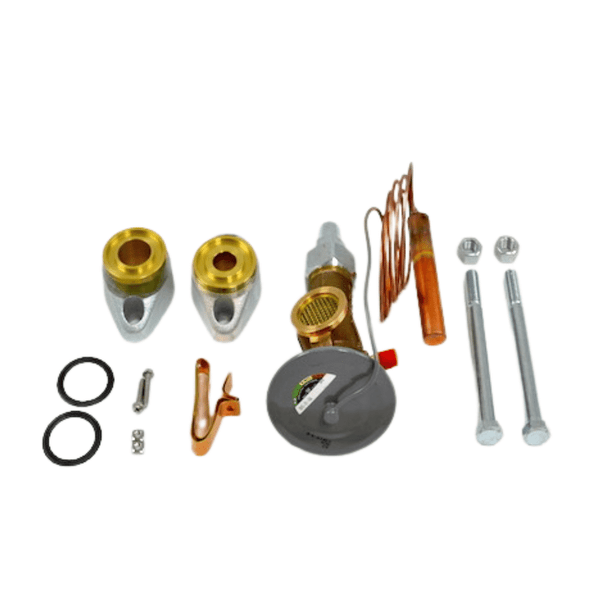

The SPORLAN 120458 thermostatic expansion valve, Type M, is designed for air conditioning applications using R-22 refrigerant. This valve features a 7/8" ODF inlet, 1-1/8" ODF outlet, and a 5' capillary tube. It is externally equalized with a 1/4" SAE connection.

• Designed for air conditioning applications
• Features a 7/8" ODF inlet and 1-1/8" ODF outlet
• Externally equalized with a 1/4" SAE connection

Product Highlights

The SPORLAN 120458 thermostatic expansion valve is suitable for air conditioning systems using R-22, providing efficient refrigerant control.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 120458
• Country of Origin: Canada

Technical Specifications

• Inlet Connection Size (inch): 7/8" ODF
• Outlet Connection Size (inch): 1-1/8" ODF
• Model Number: MVE-21-GA 7X9 ODF 5'
• Thermostatic Charge: GA
• Nominal Capacity (ton): 1 ton
• Application: Air Conditioning
• Evaporator Equalizer Size (Inch): 1/4" SAE
• Equalizer Method: Externally Equalized
• Refrigerant Type: R-22
• Product Type: M- Valve
• Maximum Operating Pressure: 27.6 bar, 400 psi
• Equalizer Connection Type: 1/4 inch (SAE), Externally Equalized
• Strainer Type: 12 Mesh Permanent
• Filter Element Type: 63
• Manufacturer Name: Sporlan Controls
• Product Number: 120458
• OEM Part Number: 120458
