Sporlan 110010 TEV Type EBF 3/8 ODF x 1/2 ODF 30 L .5-1.0 Ton Capacity EBFSE-A-ZP

Product Description

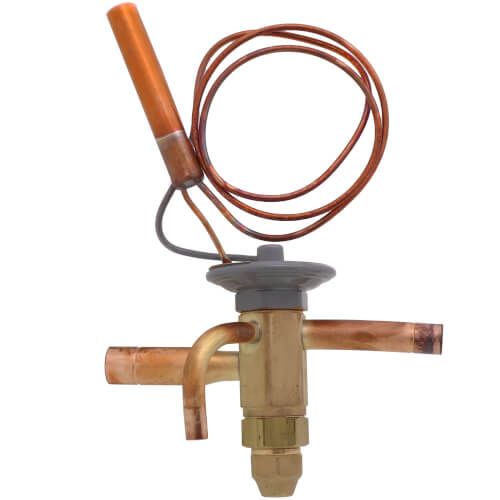

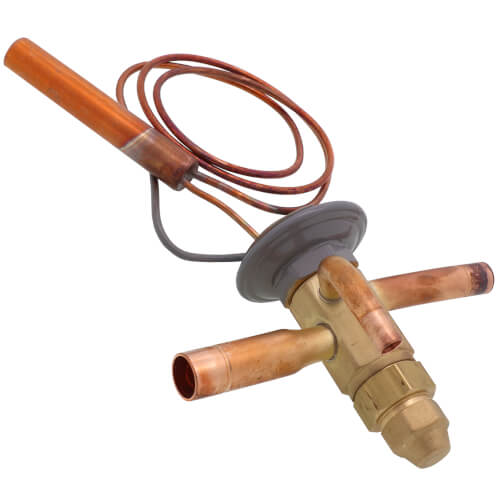

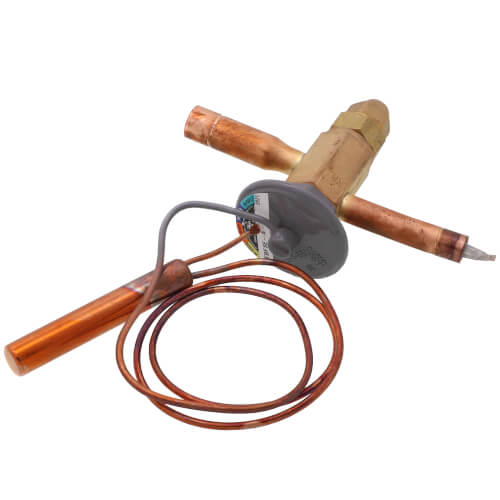

The Sporlan 110010 thermostatic expansion valve is designed for R-404A refrigeration applications. This valve features a compact size with inlet and outlet connections of three eighths inch ODF and one half inch ODF respectively. The nominal capacity of this valve ranges from point five to one ton, making it suitable for various commercial refrigeration systems.

• Type EBF for R-404A refrigeration
• Nominal capacity range of point five to one ton
• Includes an externally equalized design for stable performance

Product Highlights

This valve provides precise control of refrigerant flow, enhancing system efficiency.

Product Information

Standard Information

• Brand: Sporlan
• MPN: 110010

Technical Specifications

• Refrigerant Type: R-404A
• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Capillary Length: 30 inches
• Equalizer Method: Externally Equalized
• Nominal Capacity (Ton): .5 to 1.0
• Shipping Weight: 1.55 pounds
• Shipping Dimensions: 7 x 7 x 3 inches
