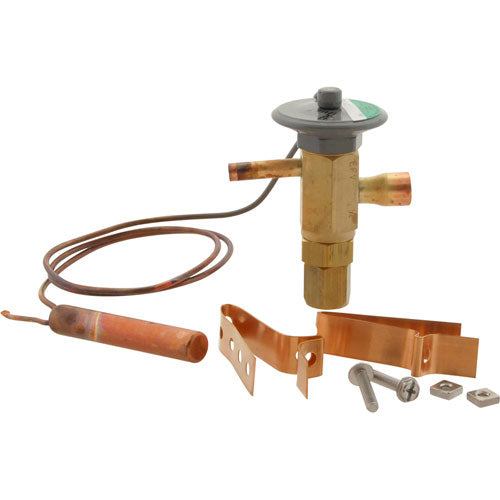

Sporlan 109957 Thermal Expansion Valve 1/4Ton R-22 30 Inch Cap

Product Description

The Sporlan 109957 Thermal Expansion Valve is designed for efficient control of refrigerant flow in air conditioning and refrigeration systems. This valve adjusts the flow of refrigerant based on the evaporator's requirements, optimizing system performance.

• Robust brass body with ODF connections for durability and ease of installation.
• Equipped with a 30-inch capillary length for flexible installation.
• Features an internal equalizer and a replaceable power element for reliable operation.

Product Highlights

The Sporlan 109957 Valve is suited for various applications, including residential and commercial air conditioning systems, refrigeration cases, and freezers. Its design allows for adjustable superheat and is factory tested to ensure leak-free performance.

Product Information

Standard Information

• Brand: Sporlan
• Model: 109957
• MPN: 109957

Technical Specifications

• Inlet Size: 1/4 inch ODF
• Outlet Size: 1/2 inch ODF
• Refrigerant Type: R-22, R-407C, R-422D, R-407A
• Capillary Length: 30 inches
• Maximum Working Pressure: 450 psi
