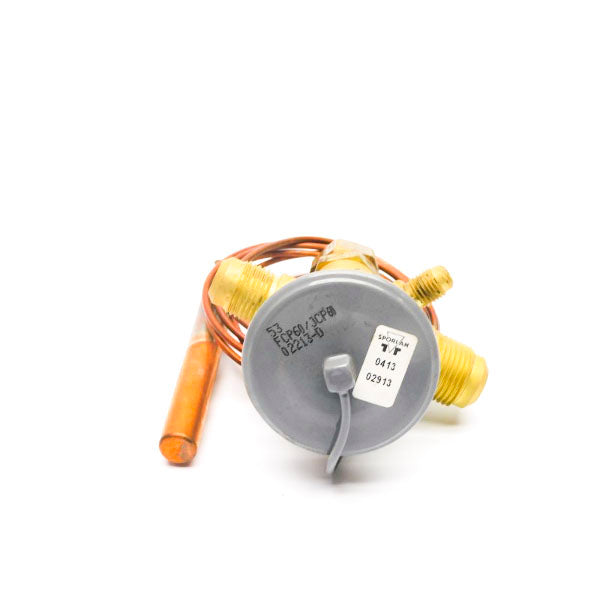

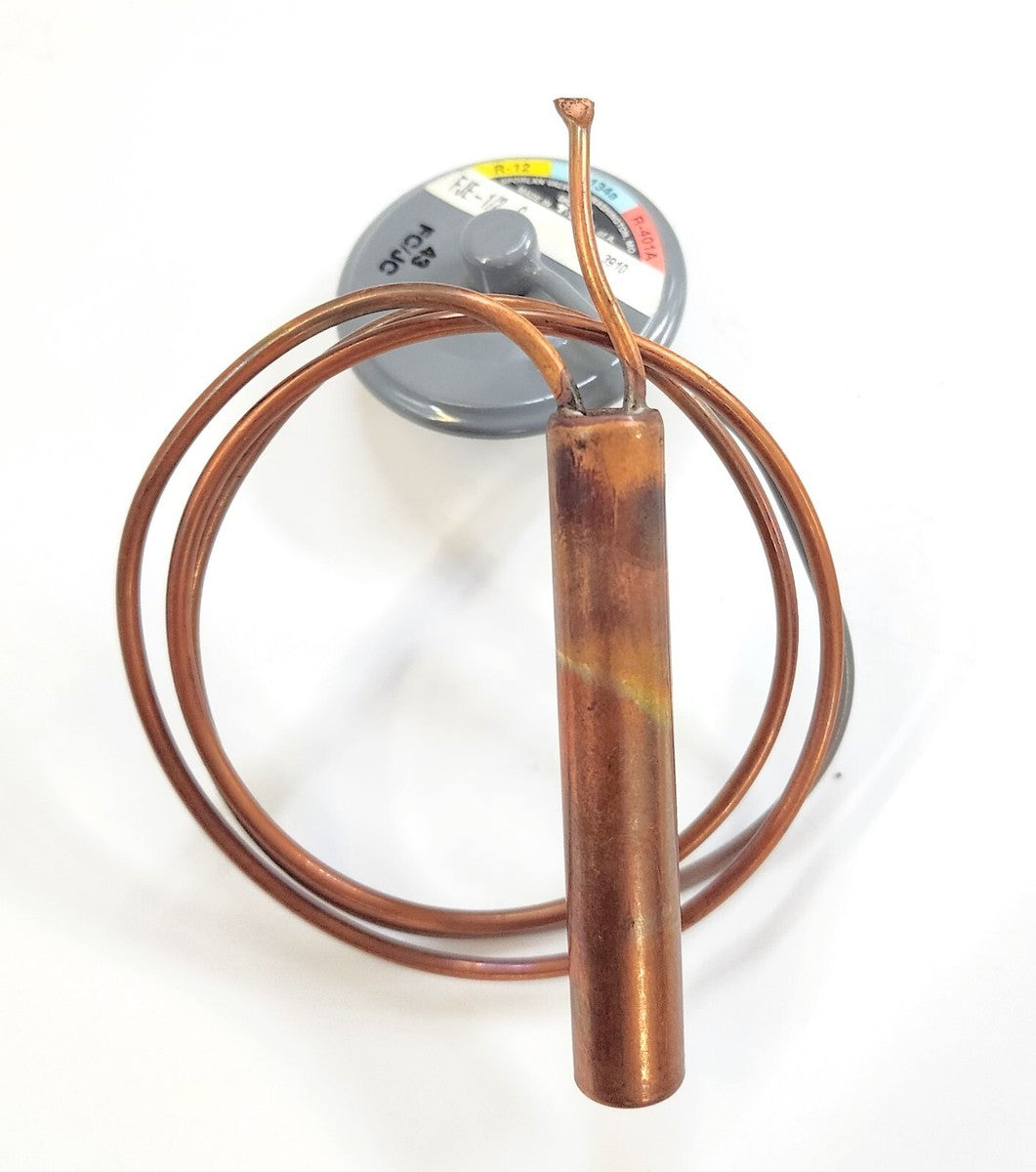

Sporlan 109560-CL EFVE-1/2-C 1/4 x 1/2 ODF Thermal Expansion Valve

Product Description

The Sporlan 109560-CL is a thermal expansion valve used in commercial refrigeration systems. This valve is compatible with R-22 refrigerant and has a nominal capacity of half a ton. It features a quarter-inch inlet and a half-inch outlet connection. The valve is designed with an externally equalized mechanism for improved operation and includes a thirty-inch capillary tube.

• Inlet Connection: 1/4 ODF
• Outlet Connection: 1/2 ODF
• Capillary Length: 30 inches

Product Highlights

This product is engineered for enhanced efficiency in commercial refrigeration.

Product Information

Standard Information

• Country of Origin: United States

Technical Specifications

• Refrigerant Type: R-22
• Application: Commercial Refrigeration
• Thermostatic Charge: C
• Nominal Capacity: 1/2 Ton
• Equalizer Method: Externally Equalized
• Strainer Type: 50 Mesh Removable
• Design Working Pressure: 450 psi (31 bar)
• Capillary Length: 30 inches
