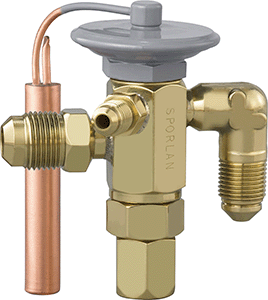

Sporlan Valves 109206 Type F Thermostatic Expansion Valves Power (1-1/2T) Replacement MPN 109206

Product Description

The Sporlan Valves 109206 Type F Thermostatic Expansion Valve is ideal for small capacity refrigeration systems. This product features a replaceable thermostatic element, making it suitable for applications in air conditioning and commercial refrigeration. The valve is designed for use with R-134a refrigerant and can handle temperatures from fifty degrees to negative ten degrees Fahrenheit, along with low temperature refrigeration from zero degrees to negative forty degrees Fahrenheit.

• Replaceable thermostatic element
• 100 mesh strainer included
• Externally-equalized straight-thru body with elbow inlet

Product Highlights

This valve supports a maximum operating pressure suitable for refrigeration needs and ensures reliable operation in various cooling applications.

Product Information

Standard Information

• Brand: Sporlan Valves
• Product Name: Type F Thermostatic Expansion Valves

Technical Specifications

• Size: 3/8 x 1/2 x 1/4
• Capacity: 1-1/2
• Material: Brass
• Refrigerant: R-134a
• Connection Ends: SAE
• Equalizer: External
• Port Size: 1/4
• Length: 4.3 inches
• Width: 3.8 inches
• Height: 3.0 inches
• Harmonized Code: 8481.80.9045
• Master Product Group: Thermostatic Expansion Valves
• Product Group: Refrigeration TEV's
• Item Class: TEV-F
• Pieces Per Case: 24
• Case Weight: 32.15
• Case Dimensions: 13.00 x 12.00 x 9.50 inches
• Cases Per Pallet: 48
• Pallet Weight: 1,593.20
• Pallet Dimensions: 48 x 40 x 50 inches
