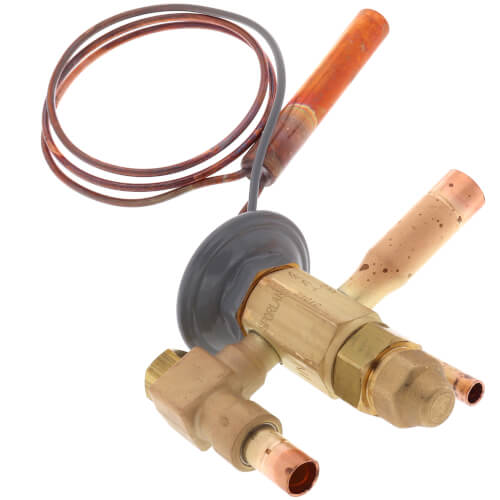

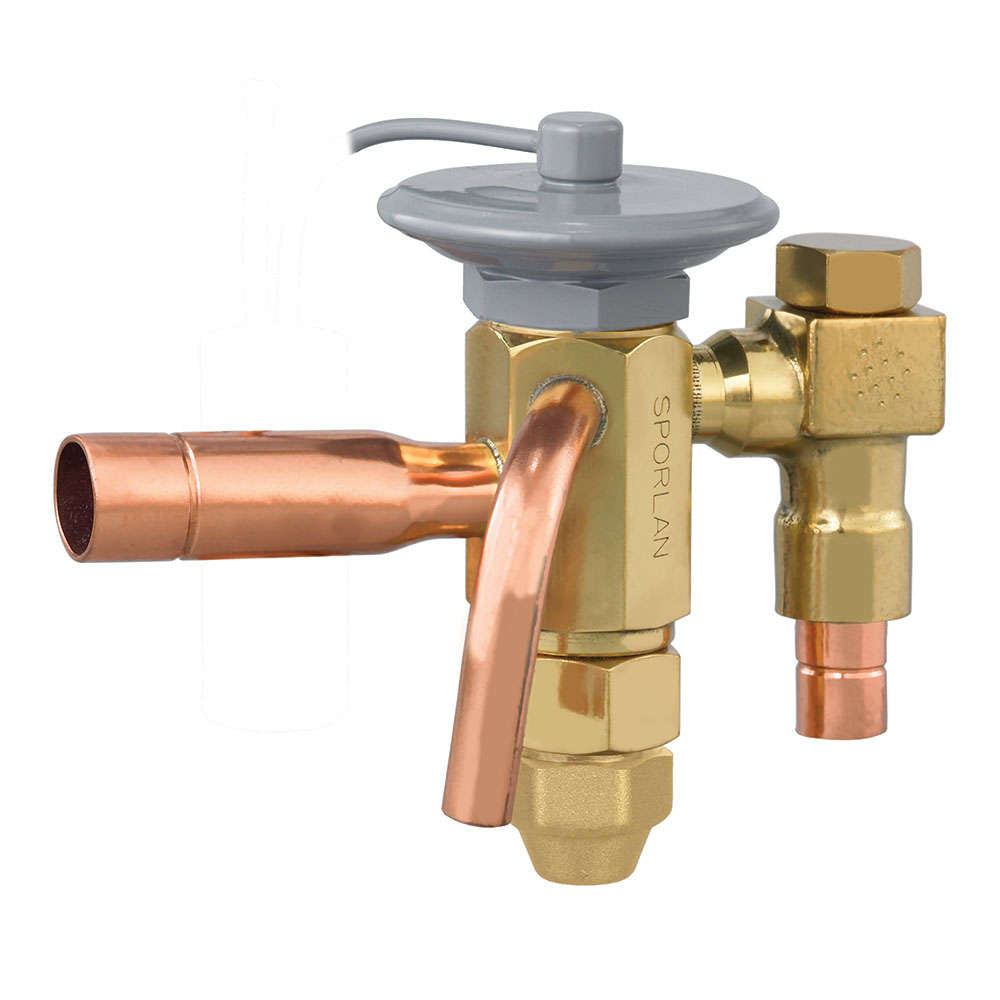

Sporlan 109185 SBFJE-A-ZP 3/8 x 1/2 ODF Thermal Expansion Valve w/ 30 Capillary 1/2 to 1 Ton

Product Description

The Sporlan 109185 SBFJE-A-ZP Thermal Expansion Valve is used in commercial refrigeration systems. This valve is designed with a brass body and provides reliable performance with low temperature refrigeration applications. It features a nominal capacity of half a ton to one ton and is compatible with R-404A refrigerant. The valve's construction includes an externally equalized design, ensuring greater efficiency in controlling refrigerant flow.

• External equalizer for better system adaptation
• Capillary length of thirty inches
• Tested for leak-free operation

Product Highlights

This thermal expansion valve is suitable for a variety of HVAC applications, particularly in air conditioning and food storage industries.

Product Information

Standard Information

• Refrigerant Type: R-404A
• Application: Low Temp Refrigeration

Technical Specifications

• Thermostatic Charge: ZP
• Nominal Capacity (Ton): 1/2 to 1
• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Equalizer Method: Externally Equalized
• Capillary Length (Inch): 30
• Strainer Type: 100 Mesh Removable
• Design Working Pressure: 450 psi (31 bar)
