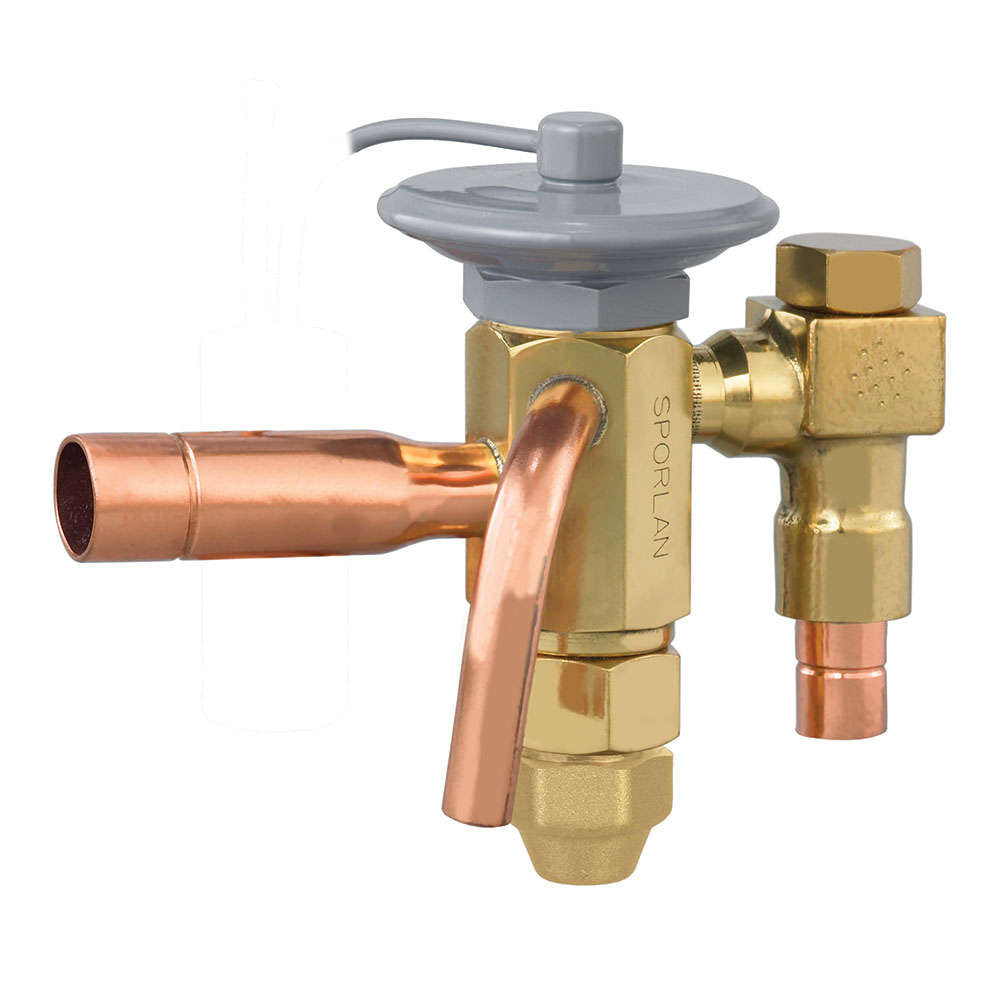

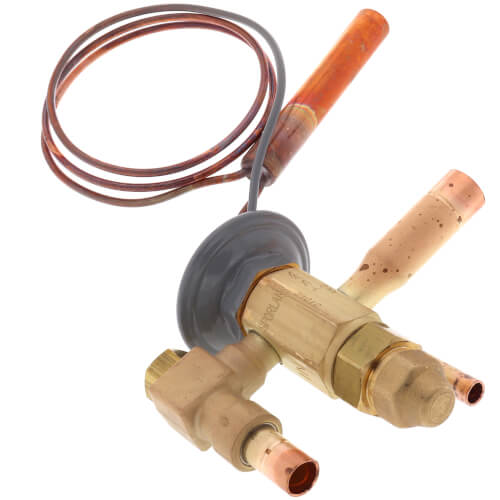

Sporlan 109108 Thermal Expansion Valve R404A (3/8 inch x 1/2 inch) 1/4-1/3T

Product Description

The Sporlan 109108 Thermal Expansion Valve is engineered for precise refrigerant regulation. This valve, compatible with R404A refrigerant, is optimal for commercial refrigeration applications.

• Designed for a capacity range from 1/4 to 1/3 ton.
• Features a 30 inch capillary length for flexible installation.
• Equipped with a 100 mesh removable strainer ensuring clean operation.

Product Highlights

This expansion valve showcases a balance port design to maintain precise alignment and prevent operation influence by pressure drop. It has adjustable superheat settings and a robust brass body with ODF connections.

Product Information

Standard Information

• Brand: Sporlan
• Model: EBFJE-AAA-C
• Type: Thermal Expansion Valve

Technical Specifications

• Refrigerant Type: R-404A
• Inlet Size: 3/8 inch ODF
• Outlet Size: 1/2 inch ODF
• Capillary Length: 30 inches
• Equalizer: External
• Connection Type: ODF
• Weight: 1.55 pounds
