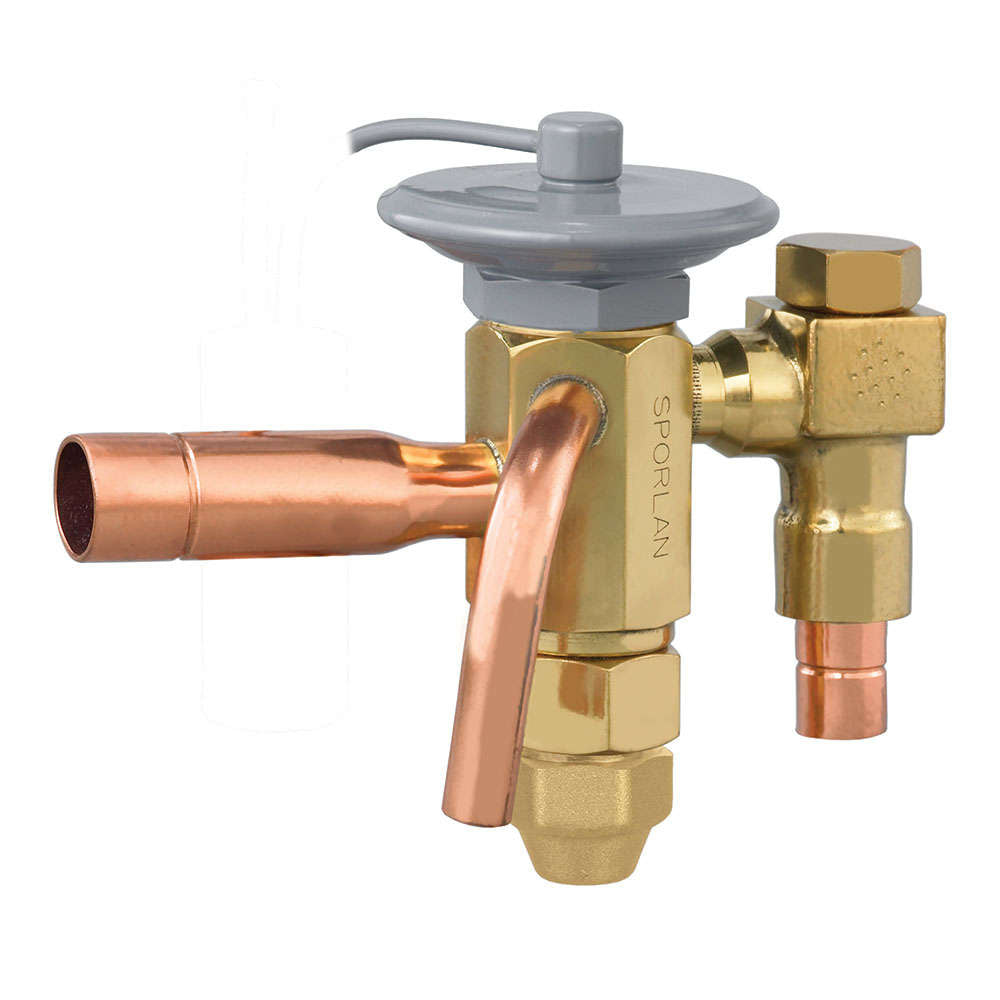

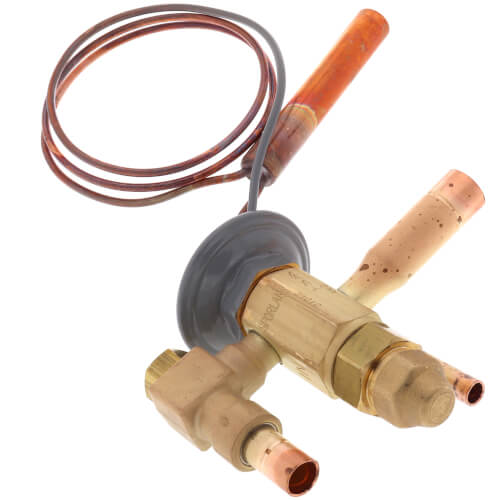

Sporlan 109002 SBFSE-AA-Z 3/8 x 1/2 ODF Thermal Expansion Valve w/ 30 Capillary 1/4 to 1/3 Ton

Product Description

The Sporlan 109002 SBFSE-AA-Z thermal expansion valve features a three-eighths inches by one-half inches ODF connection with a thirty inches capillary length. This valve is designed for low temperature refrigeration applications using R-404A refrigerant.

• Brass construction ensures durability.
• Externally equalized for improved performance.
• Factory tested for leak-free operation.

Product Highlights

This valve is suitable for various HVAC and refrigeration systems, providing reliable temperature control in commercial settings.

Product Information

Standard Information

• Manufacturer: Sporlan Controls
• Part Number: 109002

Technical Specifications

• Refrigerant Type: R-404A
• Application: Low Temperature Refrigeration
• Thermostatic Charge: ZP55
• Nominal Capacity (Ton): 1/4 to 1/3
• Inlet Connection: 3/8 ODF
• Outlet Connection: 1/2 ODF
• Equalizer Method: Externally Equalized
• Capillary Length (inches): 30
• Strainer Type: 100 Mesh Removable
