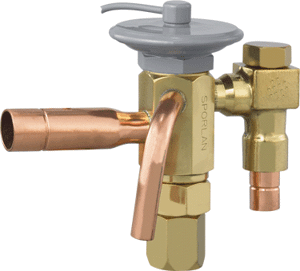

Sporlan 108707 Expansion Valve SBF Thermostatic 108707 3/8 x 1/2 Inch Extended ODF Solder R-22 External Z

Product Description

The Sporlan 108707 Expansion Valve is a thermostatic expansion valve designed for use with R-22 refrigerants. This valve features a size of three-eighths inch by one-half inch with extended ODF solder connections. The external equalizer type enhances its performance in diverse refrigeration applications.

• Designed for R-22 refrigerants
• Suitable for low-temperature refrigeration systems
• External equalizer ensures efficient operation

Product Highlights

This expansion valve is ideal for HVAC and refrigeration settings, ensuring optimal refrigerant flow control. It is suitable for installations requiring a durable solution for low-temperature applications.

Product Information

Standard Information

• Brand: Sporlan
• Part Number: 108707

Technical Specifications

• Type: Thermostatic
• Size: 3/8 x 1/2 inches
• End Connection: Extended ODF Solder
• Refrigerant: R-22
• Equalizer Type: External
• Thermostatic Charge: Z
• Cooling Capacity: 1-3/4 to 3 Ton
• Material: Brass
• Used on: Low Temperature Refrigeration
• Shipping Weight: 1.5 lbs
