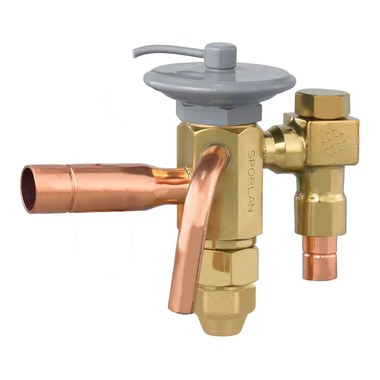

Sporlan 108689 Expansion Valve SBF Thermostatic 3/8 x 1/2 Inch Extended ODF Solder R-22 External Z

Product Description

The Sporlan Expansion Valve, model 108689, is a thermostatic valve designed for low temperature refrigeration applications. It features a size of three-eighths of an inch by one-half inch with an extended ODF solder connection. This valve is compatible with refrigerant R-22 and includes an external equalizer type for effective performance.

• Size: 3/8 x 1/2 inches
• Refrigerant Type: R-22
• Equalizer Type: External

Product Highlights

This expansion valve operates within a cooling capacity range of one-half to two-thirds ton and is made from durable brass material.

Product Information

Standard Information

• Brand: Sporlan
• Part Number: 108689

Technical Specifications

• Product Type: Thermostatic
• End Connection: Extended ODF Solder
• Refrigerant: R-22
• Thermostatic Charge: Z
• Cooling Capacity: 1/2-2/3 Ton
• Material: Brass
• Used on: Low Temp Refrigeration
• Shipping Weight: 1.500 lbs
