Sporlan 100958 expansion valve external R134A commercial 1.25 to 1.75 ton nominal 30 inches tube 3/8 inches x 1/2 inches SAE BFJE-B-C

Product Description

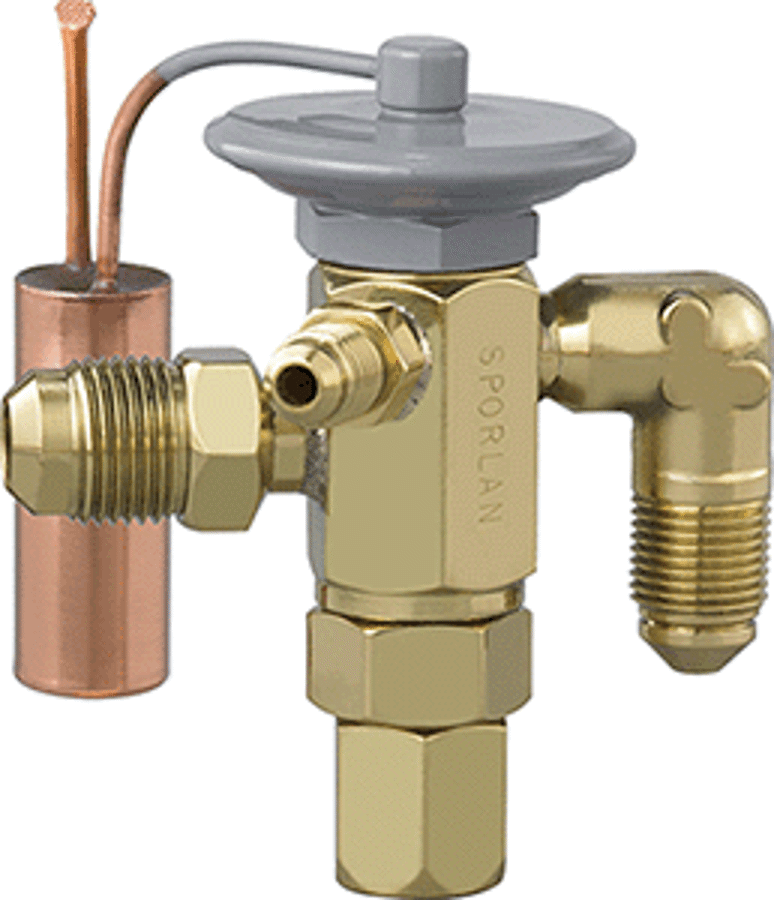

The SPORLAN 100958 thermostatic expansion valve is designed for commercial refrigeration and air conditioning units, regulating R134A refrigerant flow by maintaining a constant superheat at the evaporator outlet. This BFJE-B-C model features a machined brass body with 3/8" x 1/2" SAE flared connections and a 30" capillary tube. Its balanced port construction makes it suitable for small capacity refrigeration applications operating under varying conditions, with a nominal capacity of 1.25 to 1.75 tons.

• Regulates R134A refrigerant flow by maintaining constant superheat at the evaporator outlet.
• Features a machined brass body with 3/8" x 1/2" SAE flared connections and balanced port construction.
• Includes a 30" capillary tube, external equalizer, and a removable 100 mesh strainer.

Product Highlights

Thermostatic expansion valve for R134A systems, featuring balanced port design and external equalizer for consistent performance.

Product Information

Standard Information

• Brand: SPORLAN
• Manufacturer Part Number: 100958

Technical Specifications

• Application: Commercial Refrigeration
• Refrigerant: R134A
• Inlet Connection: 3/8" SAE
• Outlet Connection: 1/2" SAE
• Capillary Tube Length: 30"
• Body Material: Machined Brass
• Charge Type: Type C
• Connection Type: SAE Flared
• Element Size: 43
• Equalizer Size: 1/4 in
• Equalizer Type: External
• Model: BFJE-B-C
• Nominal Capacity: 1.25 to 1.75 ton
• Nominal Size: 3/8 x 1/2 in
• Pressure Rating: 450 psi
• Seat Material: Brass
• Strainer Type: 100 Mesh Removable
• Valve Type: Txv
• Thermostatic Charge Range: +50°F to -10°F
