Product Description
Introducing the Honeywell V7-1Z29E9, a highly reliable micro switch designed for advanced control and monitoring of electrical circuits. With its robust and precision-engineered design, this switch ensures optimal performance in industrial applications.
- Compact, durable design for high-performance in tight spaces.
- SPNO contact form allows for quick disconnect and connect.
- Rated for 25 Amps, operating at 250 Volts AC.
Product Highlights

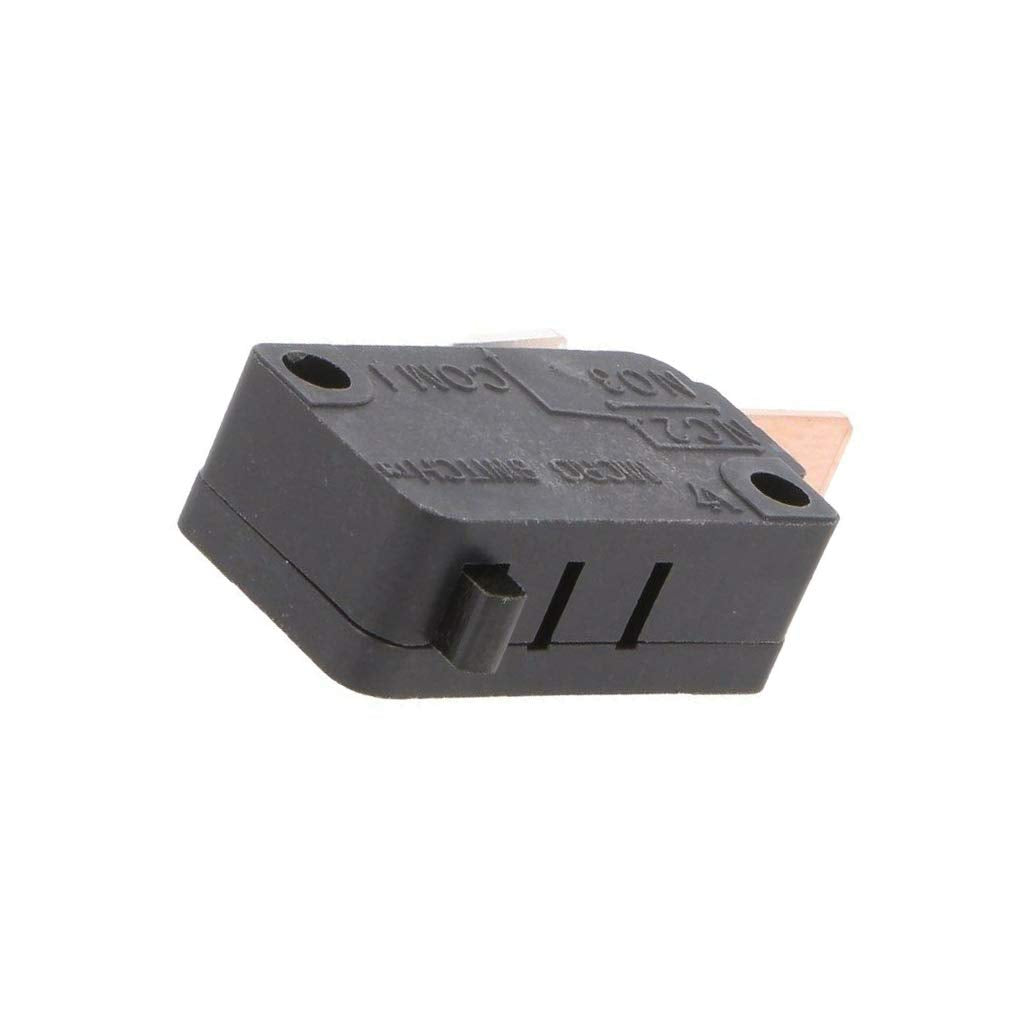

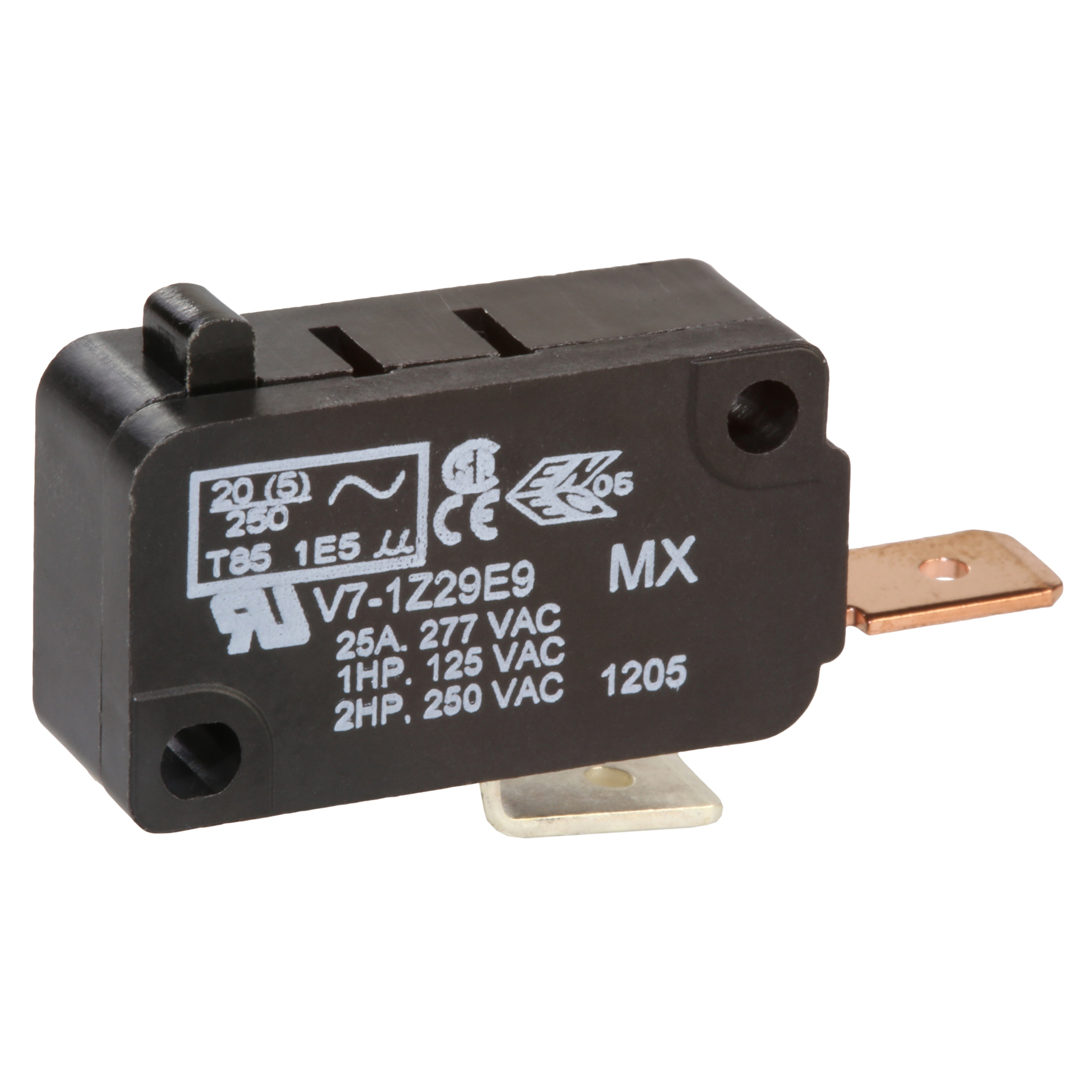

The V7-1Z29E9 switch is built with a pin plunger actuator and a quick-connect terminal for easy installation. Its compact size makes it an excellent choice for applications where space is limited but reliability is critical. Suitable for a wide range of industrial environments, this switch can handle high-current applications efficiently.
Product Information
Standard Information
-
Operating Force: 4.4 to 7.9 ounces
-
Release Force: 1.94 ounces
Technical Specifications
-
Actuator Type: Pin Plunger
-
Body Material: PCT Polyester Thermoplastic
-
Mounting Type: 0.88 inches center mount
-
Terminal Type: Quick Connect
-
Voltage Rating: 250 VAC
-
Amperage Rating: 25 Amps
-
Travel: 0.05 inches
-
Operating Temperature: -40 to 180 degrees Fahrenheit
