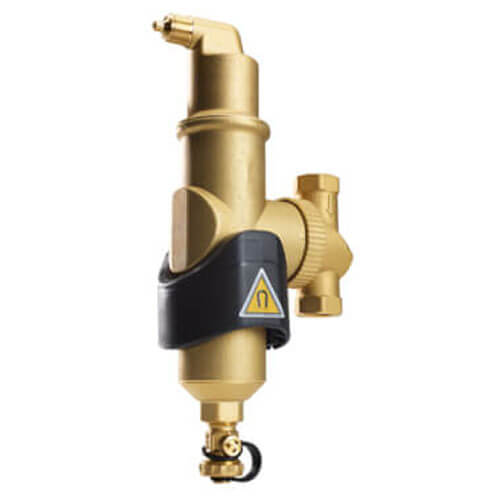

Spirotherm VDR200PFM 2 Spirocombi Air & Dirt Separator Magnet Press

Product Description

The Spirotherm VDR200PFM is a combination air eliminator and dirt separator designed for hydronic systems. This product features powerful magnets that enhance the separation of ferrous particles while eliminating air from the system. Its universal connection allows for versatile installation in both horizontal and vertical orientations. The separator is available in sizes ranging from three fourths of an inch to two inches, with options for sweat, threaded, and press-fit connections.

• Eliminates 100% of free air, 100% of entrained air, and up to 99.6% of dissolved air.
• Protects pumps, valves, boilers, and heat exchangers from dirt and debris.
• Compatible with various piping configurations.

Product Highlights

This air and dirt separator is essential for maintaining efficient system operation and longevity. It is suitable for heating applications.

Product Information

Standard Information

• Size: 2 inches
• Type: Magnetic
• Material: Brass
• Application: Heating

Technical Specifications

• Max Temp: 270 degrees Fahrenheit
• Max Pressure: 150 PSI
• Connection Type: Press x Press
• Weight: 12.5 pounds
• Shipping Dimensions: 13 inches (depth) x 7.5 inches (width) x 4.5 inches (height)
