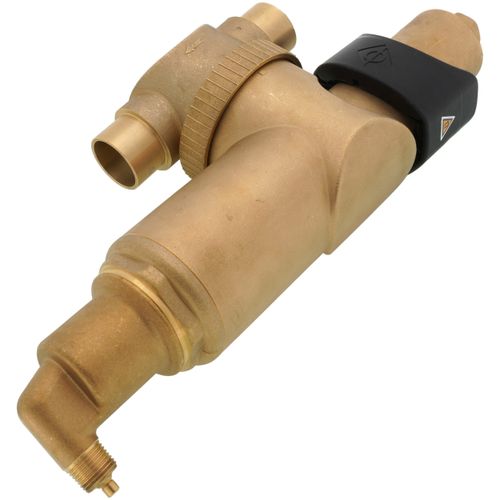

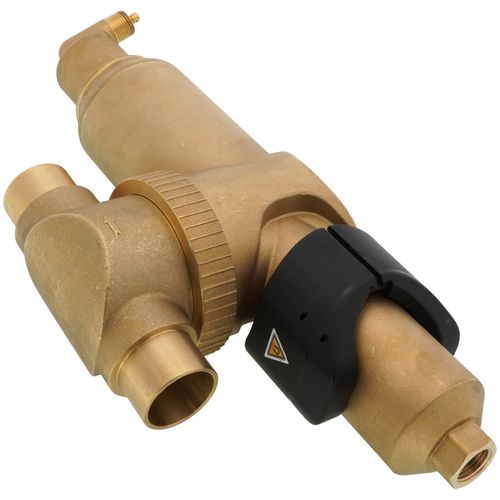

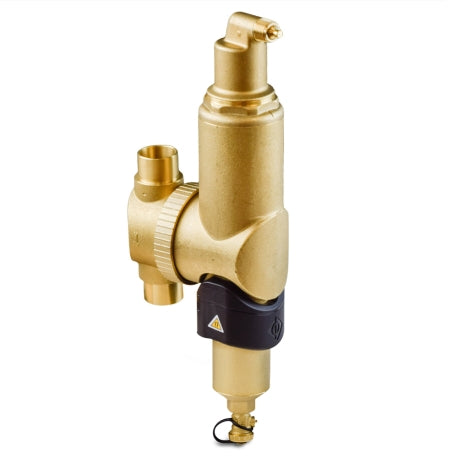

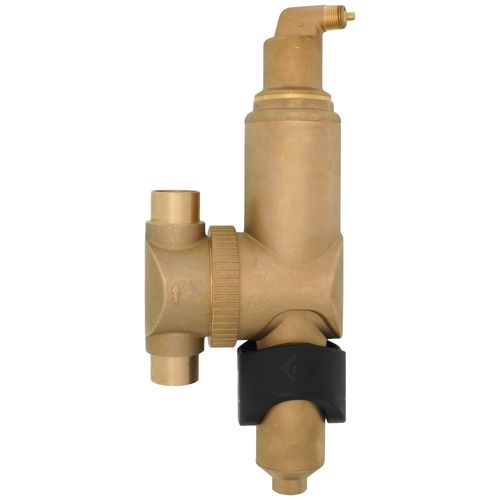

Spirotherm VDR125SWM Spirocombi Air and Dirt Separator 1-1/4 inches Sweat

Product Description

The Spirotherm VDR125SWM is a Spirocombi combination air eliminator and magnetic dirt separator for hydronic and heating systems. It uses a coalescing Spirotube to remove entrained and dissolved air while integrated magnets surround the flow path to capture ferrous particles. The brass unit supports sweat C x C connections and universal installation in horizontal or vertical piping, with a maximum 150 psi rating and 270�F operating temperature.

• Coalescing-type Spirotube removes free, entrained, and dissolved air; rated to remove up to 99.6% of dissolved air
• Integrated magnets surround the flow path to increase separation of ferrous particles
• 1-1/4" sweat (SWM) C x C connection with universal swivel for horizontal or vertical installation; rated 150 psi, 270�F, up to 15 GPM

Product Highlights

Brass Spirocombi combination air eliminator and magnetic dirt separator for hydronic systems; 1-1/4" sweat connection; 150 psi max; 270�F max; up to 15 GPM; includes bottom drain and swivel connection.

Product Information

Standard Information

• Brand: SPIROTHERM
• Manufacturer Part Number: VDR125SWM

Technical Specifications

• Brand: Spirotherm
• Manufacturer Part Number: VDR125SWM
• Series: Spirocombi
• Product Type: Combination air eliminator and dirt separator (magnetic)
• Connection Method: Sweat
• Connection Size: 1-1/4"
• Connection Details: C x C (SWM), rotating swivel for horizontal or vertical installation
• Bottom Drain: 3/4" GHT with shut-off valve
• Max Pressure: 150 psi
• Max Temperature: 2706F
• Flow Rate: 15 GPM (at 4 ft/sec velocity)
• Material: Brass
• Installation: Horizontal or vertical
• Application: Heating / Hydronic systems
• Type: Magnetic
