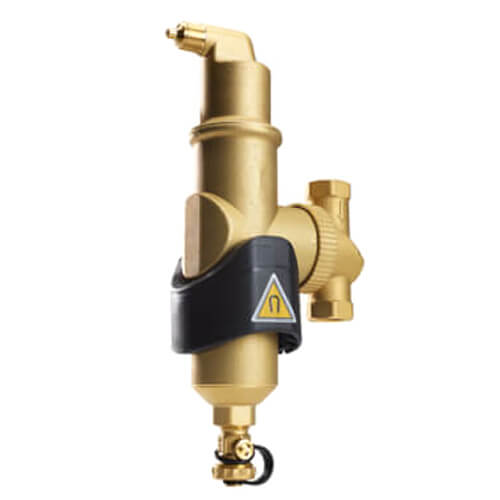

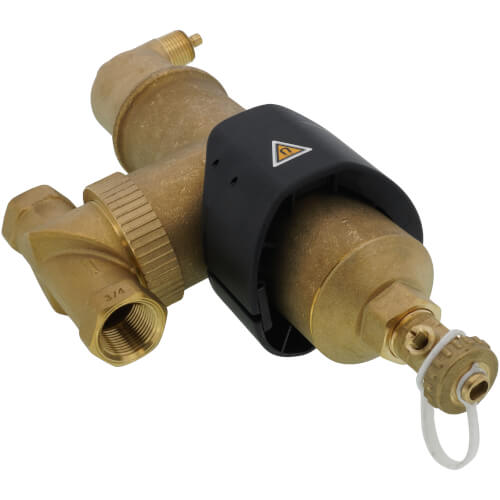

Spirotherm VDR125FTM 1-1/4 Spirocombi Air & Dirt Separator Magnet Threaded

Product Description

The Spirotherm VDR125FTM is a 1-1/4 inch Spirocombi air and dirt separator magnet designed for use in hydronic systems. This product acts as both an air eliminator and a dirt separator. The powerful magnets integrated into the design enhance the separation of ferrous particles in the fluid flow. Its universal connection allows for easy installation in both horizontal and vertical pipe orientations. This model accommodates various sizes, from three-quarters of an inch to two inches, with options for sweat, threaded, and press fit connections.

• Eliminates all free and entrained air along with up to 99.6% of dissolved air.
• Protects essential components like pumps and boilers from debris.
• Durable construction with a maximum temperature rating of 270°F and pressure capacity of 150 PSI.

Product Highlights

This air and dirt separator is essential for maintaining the efficiency of hydronic heating systems.

Product Information

Standard Information

• Brand: Spirotherm
• Type: Magnetic

Technical Specifications

• Material: Brass
• Weight: 11.5 lbs
• Size: 1-1/4 inches
• Connection Type: FNPT x FNPT
• Max Temperature: 270°F
• Max Pressure: 150 PSI
• Replacement Parts: VDR125IT
• Application: Heating
