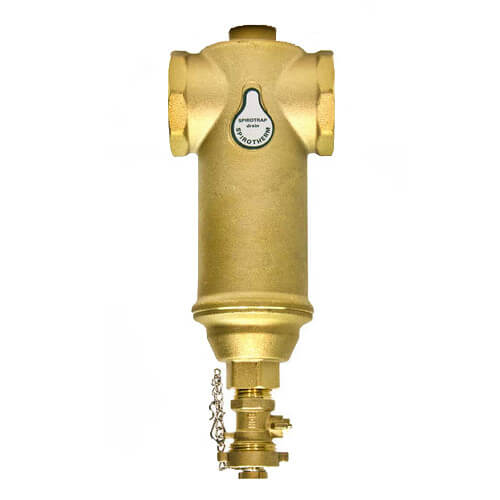

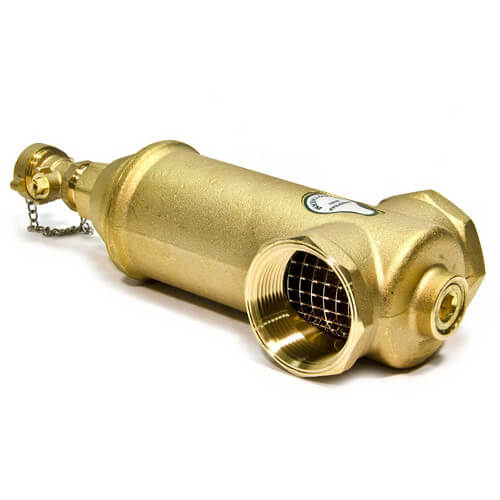

Spirotherm TDN150FT Spirotrap Jr. Dirt Separator (1-1/2 inches NPT)

Product Description

Spirotherm TDN150FT is a Spirotrap Jr. 1-1/2" NPT brass dirt separator that creates a low-velocity, low-turbulence chamber to remove dirt and sediment from hydronic and heating systems. Collected debris settles for periodic blowdown via the factory-supplied bottom ball valve. The unit is rated for up to 30 GPM flow, 150 psi maximum pressure, and 270 F maximum temperature, suitable for residential and light commercial applications.

• Brass body construction with 1-1/2" NPT threaded connection for inline installation
• Low-velocity separation chamber (Spirotube barrier medium) allows sediment to settle for blowdown via bottom ball valve
• Performance ratings: 30 GPM flow, 150 psi maximum pressure, 270 F maximum temperature

Product Highlights

1-1/2" NPT Spirotrap Jr. dirt separator; brass construction; 30 GPM, 150 psi, 270 F; bottom blowdown ball valve.

Product Information

Standard Information

• Brand: SPIROTHERM
• Manufacturer Part Number: TDN150FT

Technical Specifications

• Brand: Spirotherm
• Manufacturer Part Number: TDN150FT
• Model: Spirotrap Jr. 1-1/2"
• Product Type: Dirt separator
• Application: Residential and light commercial hydronic/heating systems
• Material: Brass
• Body Material: Brass
• Connection Size: 1-1/2"
• Connection Type: NPT (threaded)
• Connection Method: Threaded
• Maximum Flow Rate: 30 GPM
• Maximum Pressure: 150 psi
• Maximum Temperature: 270 F
• Velocity Rating: 4 fps
• Dimensions: 3.5 in length (approx.)
• Weight: 5.00 lb
• Separator Element: Spirotube barrier medium
• Drain Type: Bottom blowdown via factory-supplied ball valve
• Removable Head: Yes
