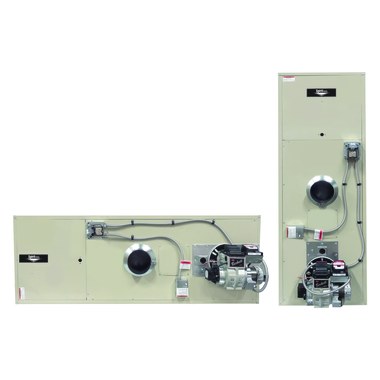

SPIRIT VC-CBP SPIRIT VC-CBP Counterflow/Horizontal Oil Furnace

Product Description

The SPIRIT VC-CBP is an oil furnace suitable for residential or commercial applications. It comes fully assembled, wired, and tested to ensure optimal performance. This model supports multiple configurations, including upflow, horizontal, and downflow installation. The robust design features a heavy-gauge heat exchanger and a ceramic fiber combustion chamber for efficient heating.

• Supports multi-position configurations.
• Features a multi-speed PSC blower motor.
• Equipped with Beckett AFG oil burners.

Product Highlights

This oil furnace ensures effective heating with a variety of installation options.

Product Information

Standard Information

• Brand: SPIRIT
• Furnace Type: Oil

Technical Specifications

• MPN: VC-CBP
• Mounting Orientation: Counterflow/Horizontal
• Fuel Type: Oil
• AFUE: 85%
• Heating BTU: Low Fire 84,000 BTU / Medium Fire 105,000 BTU / High Fire 119,000 BTU
• BTU Input: 119,000
• BTU Output: 69,000-97,000
• Stages Heating: (1) Single
• Air Flow Direction: Downflow
• Blower Motor HP: 1/2 HP
• Blower Motor Type: PSC
• Blower Motor Speeds: 4
• CFM: 1,139-1,550
• Filter Size: 20 x 20 x 1
• Includes Filter Rack: Yes
• Ignition Type: Direct Spark (DSI)
• Flue Outlet: 6
• Voltage: 120 VAC
• Cycle/Hertz: 60 Hz
• Height: 61.25
• Width: 22.25
• Depth: 22.25
• Weight: 280 lbs
• Combustion Vent Type: Chimney
• Approvals: ETL Listed
• Country of Origin: USA
