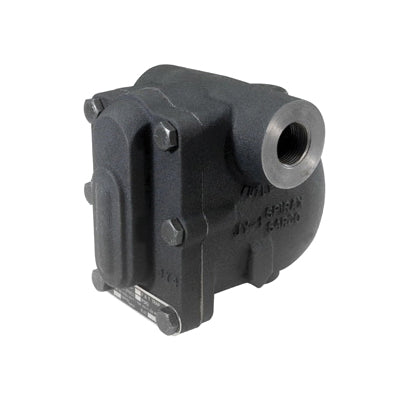

Spirax Sarco 74116 FTI-75 Float and Thermostatic Steam Trap 75 psi

Product Description

The Spirax Sarco FTI-75 Float and Thermostatic Steam Trap, model 74116, features an efficient float valve system designed to continuously discharge condensate at steam temperature. This trap also incorporates a balanced pressure thermostatic air vent to release non-condensable gases effectively. The design simplifies installation with its in-line piping connections.

• Float valve mechanism for continuous condensate discharge
• Thermostatic air vent for non-condensable gas release
• In-line connections for easy installation

Product Highlights

This steam trap is suitable for heat exchange systems where air and gases must be vented quickly. It operates efficiently under varying load conditions.

Product Information

Standard Information

• Brand: Spirax Sarco
• Manufacturer: Spirax-Sarco Inc

Technical Specifications

• MPN: 74116
• Series: FTI-75
• Nominal Size: 1-1/2 inches
• Material: Cast Iron
• Max Pressure: 75 psi
• Temperature Rating: 450 deg F
• Operating Weight: 52.00 lbs
