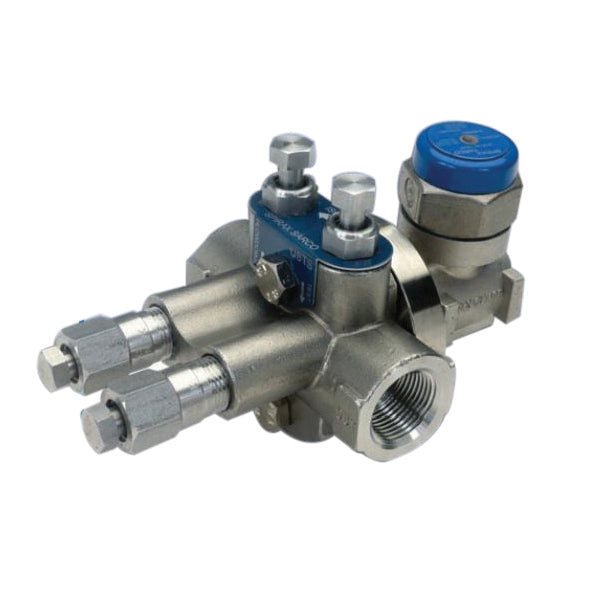

Spirax Sarco 73483 USTS II Compact Universal Steam Trap Station 3/4 in

Product Description

The Spirax Sarco 73483 USTS II series of steam trap stations are designed as a complete trap station in a compact size. The trap station includes two isolation valves for inlet and outlet flow, an inlet strainer blow down valve, and a test valve with mount for a universal style of steam trap. Blowdown valves can also be used for depressurization of station for trap maintenance.

• Works with all standard universal connection steam traps
• Allows for trap change out in less than 5 min
• Minimal heat loss

Product Highlights

Compact universal steam trap station with inlet and outlet isolation valves and integral strainer with blowdown and test valve.

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 73483

Technical Specifications

• Connection Type: NPT
• Material: Stainless Steel
• Nominal Size: 3/4 in
• Pressure Rating: 650 psig
• Temperature Rating: 750 deg F
• Type: Compact
• Series/Model: Model USTS II
• Body Material: Stainless Steel
• Material Standard: ASTM A351 Grade CF8
• Application: Commercial, Industrial
• End Connection 1: NPT
• End Connection 2: NPT
• Maximum Temperature: 750 deg F
• Pressure - Maximum: 650 psig
• Valve Body Material: Stainless Steel
• Valve Size: 3/4 in
• MPN: 73483
• Model: UNIVERSAL STEAM TRAP STATION
