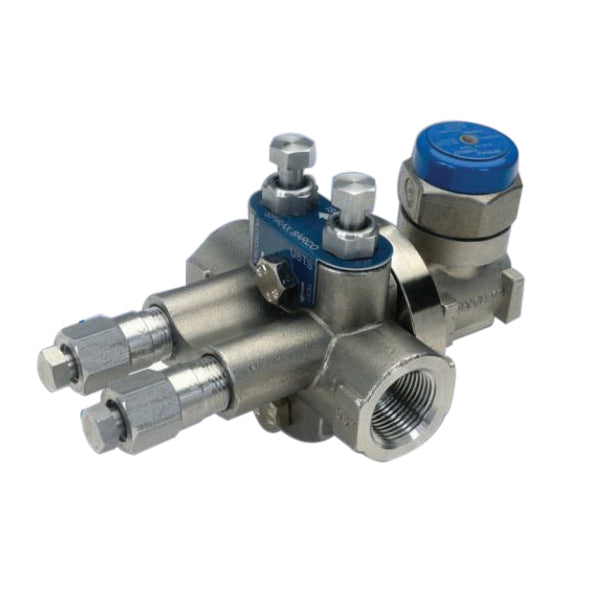

Spirax Sarco 73405 USTS II Compact Universal Steam Trap Station 1/2 in

Product Description

The Spirax Sarco 73405 USTS II series of steam trap stations are designed as a complete trap station in a compact size. The trap station includes two isolation valves for inlet and outlet flow, an inlet strainer blow down valve, and a test valve with mount for a universal style of steam trap. Blowdown valves can also be used for depressurization of station for trap maintenance.

• Works with all standard universal connection steam traps
• Allows for trap change out in less than 5 min
• Minimal heat loss

Product Highlights

Compact universal steam trap station with isolation valves, integral strainer, and test valve. Supports Spirax Sarco universal steam traps.

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 73405

Technical Specifications

• Connection Type: NPT
• Material: Stainless Steel
• Nominal Size: 1/2 in
• Pressure Rating: 650 psig
• Temperature Rating: 750 deg F
• Type: Compact
• Series/Model: Model USTS II
• Body Material: Stainless Steel
• Material Standard: ASTM A351 Grade CF8
• Length: 3.9 IN
• Height: 3.7 IN
• Flow Pattern: In-Line Horizontal
