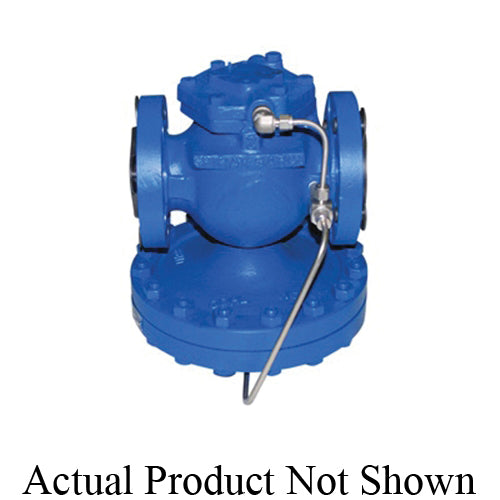

Spirax Sarco 71417 25P Pilot Operated Pressure Reducing Main Valve

Product Description

The Spirax Sarco 71417 is a pilot operated pressure reducing main valve designed for effective pressure control in steam applications. This valve maintains downstream pressure through a sensing line that communicates with the pressure pilot, adjusting the main valve opening as needed. It features a tight closure to meet ANSI/FCI 70-2 Class IV shut-off standards, ensuring reliability when steam is not in use. With a nominal size of three-fourths of an inch, it supports a maximum pressure rating of two hundred fifty psig and a temperature rating of four hundred fifty degrees Fahrenheit.

• Pressure reducing capacity for steam systems
• Features a cast iron body for durability
• Vertical or horizontal installation options

Product Highlights

This pressure reducing valve offers a combination of pilot controls that allow for versatility in steam pressure management.

Product Information

Standard Information

• Manufacturer: Spirax-Sarco Inc
• Brand: Spirax Sarco

Technical Specifications

• Body Material: Cast Iron
• Dimensions: 18.4 in H
• Media: Steam
• Nominal Size: 3/4 in
• Pressure Rating: 250 psig
• Temperature Rating: 450 deg F
• End Style: NPT
• Series: 25P
