Spirax Sarco 70009 TDC Thermodynamic Steam Trap (3/4 in NPT)

Product Description

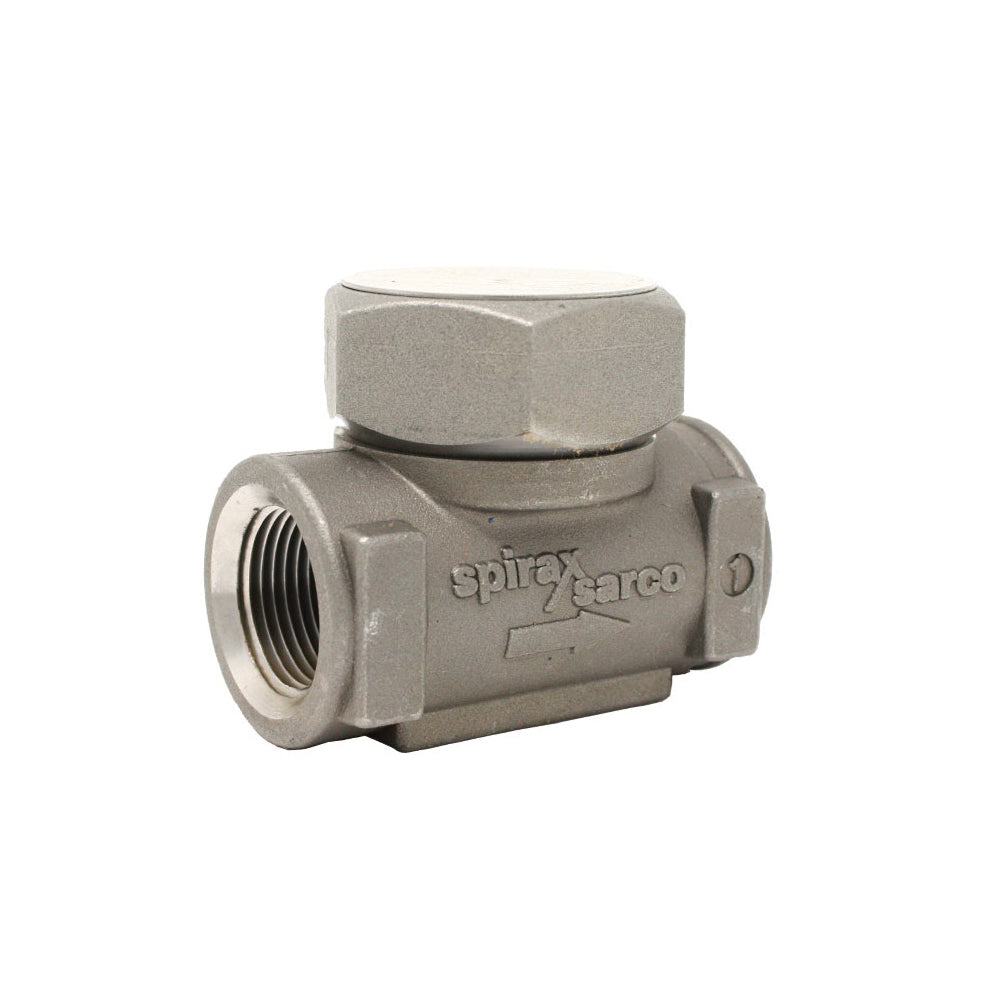

The Spirax Sarco 70009 is a TDC thermodynamic steam trap that periodically discharges condensate very near steam temperature. It has stainless steel construction with 3/4 in NPT end connections and a compact 2.8 in length for inline horizontal piping. The trap is rated to 600 psig and to 800°F, operates down to 3.5 psig, and is designed to resist water hammer and superheat.

• Stainless steel TDC thermodynamic design with 3/4 in NPT connections and 2.8 in length
• Maximum operating pressure 600 psig and maximum allowable temperature up to 800 °F; minimum operating pressure 3.5 psig
• Inline horizontal installation; unaffected by water hammer or superheat; maximum back pressure should not exceed 80% of inlet

Product Highlights

TDC thermodynamic design; stainless steel body; 3/4 in NPT; 600 psig / 800 °F rating

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 70009
• Country of Origin: Domestic
