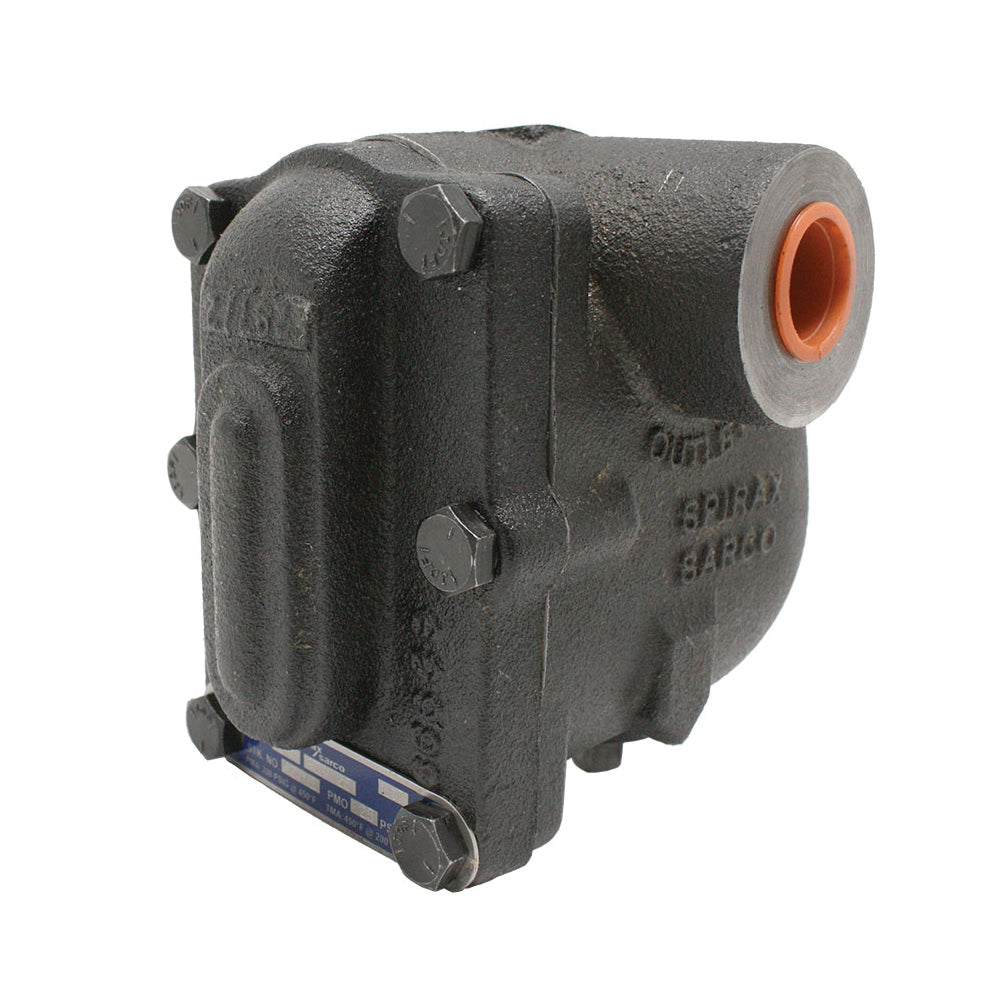

Spirax Sarco 66675 FTI-30 Float and Thermostatic Steam Trap 1 in

Product Description

The SPIRAX SARCO 66675 FTI-30 is a float and thermostatic steam trap containing a float valve mechanism that modulates to discharge condensate continuously at steam temperature. Non-condensable gases are released by a separate internal balanced pressure thermostatic air vent. Its in-line piping connections simplify installation.

• Maximum allowable pressure of 200 psig at 450 deg F
• Inline horizontal piping configuration
• Stainless steel internals

Product Highlights

This steam trap is designed for continuous drainage and is suitable for low, medium, and high-pressure steam mains. It is ideal for heat exchange equipment where quick venting of air and non-condensable gases is needed.

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 66675

Technical Specifications

• End Style: FNPT
• Length: 6-1/2 in
• Material: Cast Iron
• Nominal Size: 1 in
• Series: FTI-30
• Temperature Rating: 450 deg F
• Orifice: 0.218 IN
• Material Standard: ASTM A126 Grade B
• Capacity: 1370 LB/HR
• Steam Trap Type: Float & Thermostatic
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 200 psi
