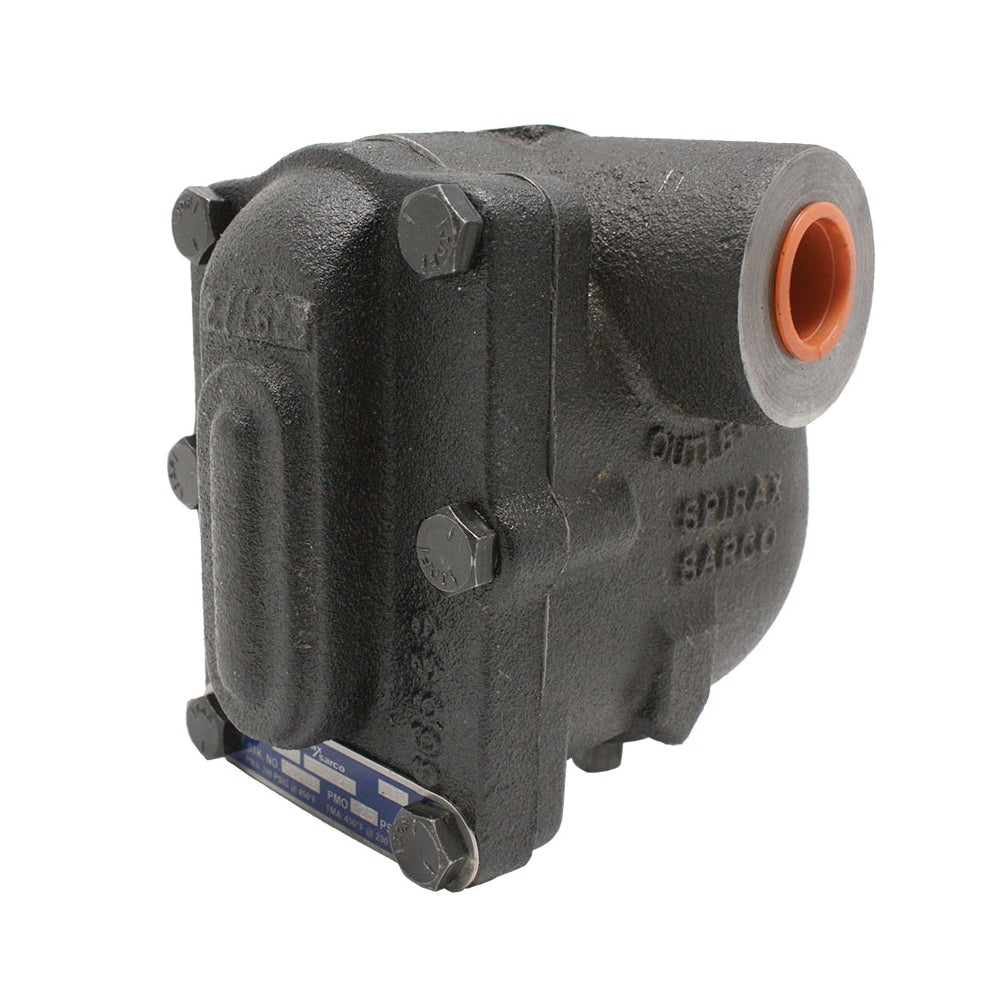

Spirax Sarco 66673 FTI-200 FLOAT & THERMOSTATIC STEAM TRAP

Product Description

The Spirax Sarco FTI-200 Float and Thermostatic Steam Trap, MPN 66673, features a float valve that continuously discharges condensate at steam temperature. It also has an internal balanced pressure thermostatic air vent for releasing non-condensable gases. This design assures efficient operation and simplifies installation with in-line piping connections.

• Durable cast iron construction
• Float valve mechanism for continuous condensate discharge
• 200 psi maximum allowable pressure

Product Highlights

This steam trap is suitable for low, medium, and high-pressure steam mains and is particularly effective for venting air and non-condensable gases quickly.

Product Information

Standard Information

• Brand: Spirax Sarco
• Model: FTI-200

Technical Specifications

• Dimensions: 5.8 inches H x 4.8 inches W
• End Style: FNPT
• Length: 6.5 inches
• Material: Cast Iron
• Nominal Size: 3/4 inches
• Pressure Rating: 200 psi
• Temperature Rating: 450 degrees F
• Series: FTI-200
