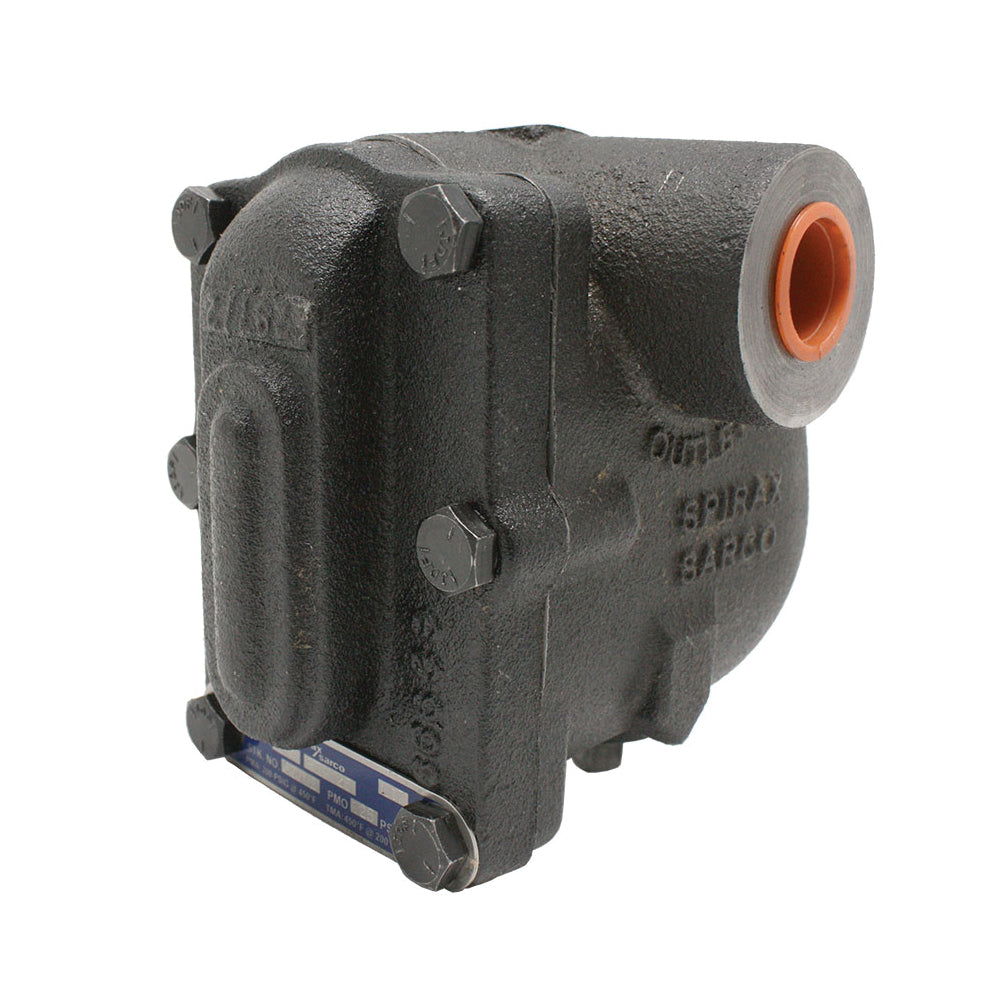

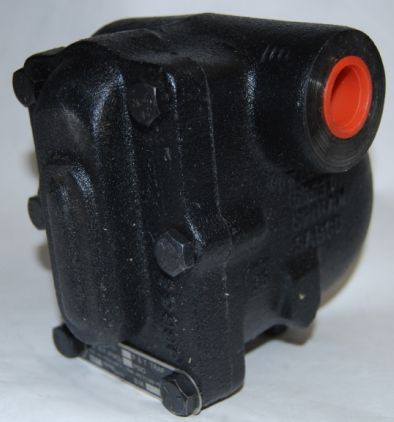

Spirax Sarco 66668 FTI-200 1/2 NPT Float and Thermostatic Steam Trap

Product Description

The Spirax Sarco FTI-200, MPN 66668, is designed to efficiently manage the discharge of condensate while removing non-condensable gases. This float and thermostatic steam trap operates at a maximum pressure of two hundred psi and a temperature rating of four hundred fifty degrees Fahrenheit. Its compact in-line design simplifies installation and is suitable for various steam applications.

• Continuous drainage for effective steam management
• Stainless steel internal parts ensure durability
• Ideal for low, medium, and high-pressure steam mains

Product Highlights

Utilized in heat exchange systems, this steam trap is efficient for modulating pressures with variable loads. It helps drain condensate while maintaining optimal operation by venting air quickly.

Product Information

Standard Information

• Brand: Spirax-Sarco
• Model: FTI-200

Technical Specifications

• Dimensions: 5.8 inches H x 4.8 inches W
• End Style: FNPT
• Length: 6.5 inches
• Material: Cast Iron
• Nominal Size: 1/2 inches
• Pressure Rating: 200 psi
• Temperature Rating: 450 degrees Fahrenheit
• Series: FTI-200
