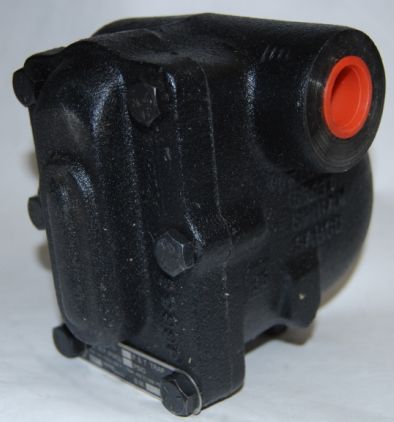

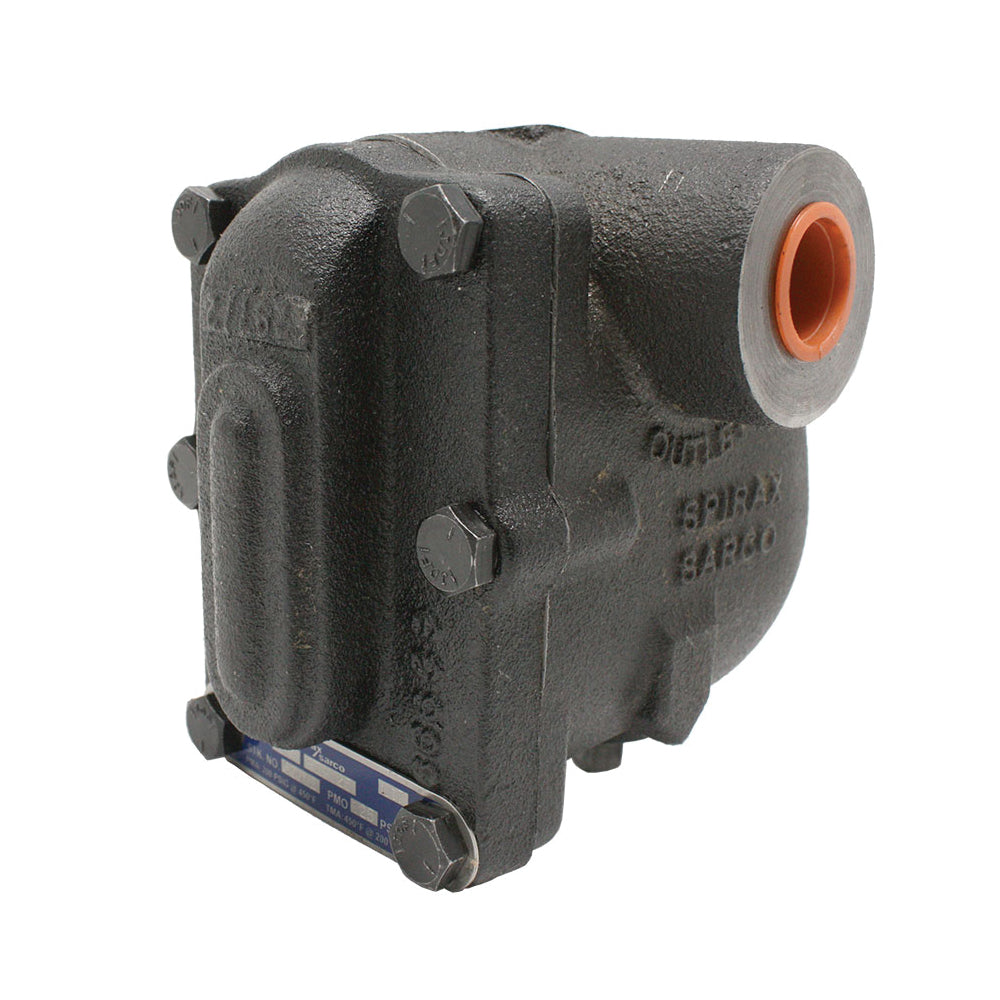

Spirax Sarco 66665 FTI-30 Float and Thermostatic Steam Trap 30 psi 1/2 in

Product Description

The Spirax Sarco FTI-30 model steam trap is essential for efficient condensate removal and air venting. Designed with a float and thermostatic mechanism, it modulates to discharge any condensate continuously at steam temperature. Non-condensable gases release through a separate internal thermostatic air vent, ensuring effective operation.

The in-line configuration simplifies installation and maintenance, making it suitable for a variety of steam systems. This trap is made from durable cast iron and is rated for pressures up to thirty psi and temperatures up to four hundred fifty degrees Fahrenheit, making it capable of handling demanding applications.

• Durable cast iron construction
• 30 psi maximum operating pressure
• Stainless steel internal components

Product Highlights

The FTI-30 is ideal for industrial applications where efficient condensate removal is required.

Product Information

Standard Information

• Brand: Spirax-Sarco
• MPN: 66665

Technical Specifications

• Size: 1/2 in
• Length: 6-1/2 in
• Pressure Rating: 30 psi
• Temperature Rating: 450 deg F
• Material: Cast Iron
• End Style: FNPT
• Dimensions: 5.8 in H x 4.8 in W
• Series: FTI-30
