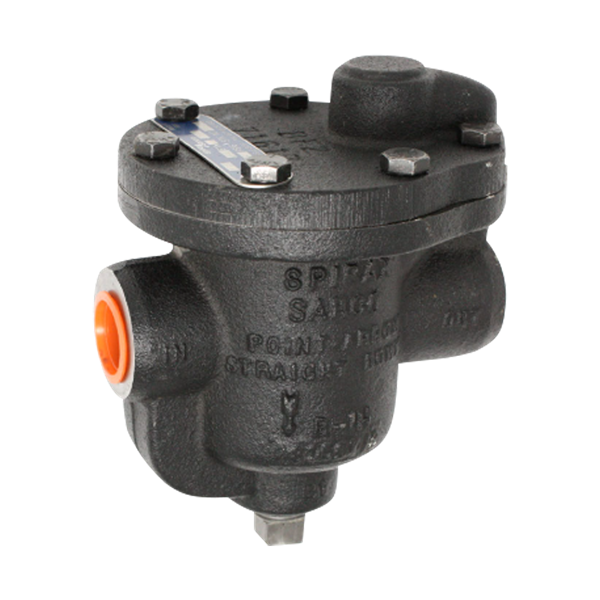

Spirax Sarco 64167 B1HS Inverted Bucket Steam Trap With Integral Stainless Steel 3/4 in

Product Description

The Spirax Sarco 64167 B1HS inverted bucket steam trap contains an inverted bucket mechanism that responds to the density difference between steam and condensate, discharging condensate close to steam temperature. The discharge action is cyclic. It has a 3/4 in nominal size and FNPT end style. Used in steam main drip stations, laundry equipment, industrial dryers and storage tanks.

• Maximum allowable pressure: 250 psig at up to 450 deg F
• Maximum allowable temperature: 450 deg F at 0 to 250 psig
• In-line horizontal piping configuration

Product Highlights

The Spirax Sarco inverted bucket steam trap keeps steam space free of condensate to provide maximum system efficiency.

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 64167

Technical Specifications

• End Style: FNPT
• Length: 5 in
• Material: Cast Iron
• Nominal Size: 3/4 in
• Pressure Rating: 75 psi
• Series: B Series
• Temperature Rating: 450 deg F
• Width: 4 IN
• Series/Model: Model B1HS-75
• Connection Type: NPT
• Body Material: Cast Iron
• Material Standard: ASTM A126 Grade B
• Steam Trap Type: Inverted Bucket (B1H)
• Model: B1H-75 (75 PSI)
• Steam Trap Connection Size: 3/4"
• Max Pressure: 75 psi
• Part Number: 64167
• Steam Trap Mounting: In-Line Horizontal
