Spirax-Sarco 64164 B1H-250 3/4 In-Line Horizontal Bucket Trap

Product Description

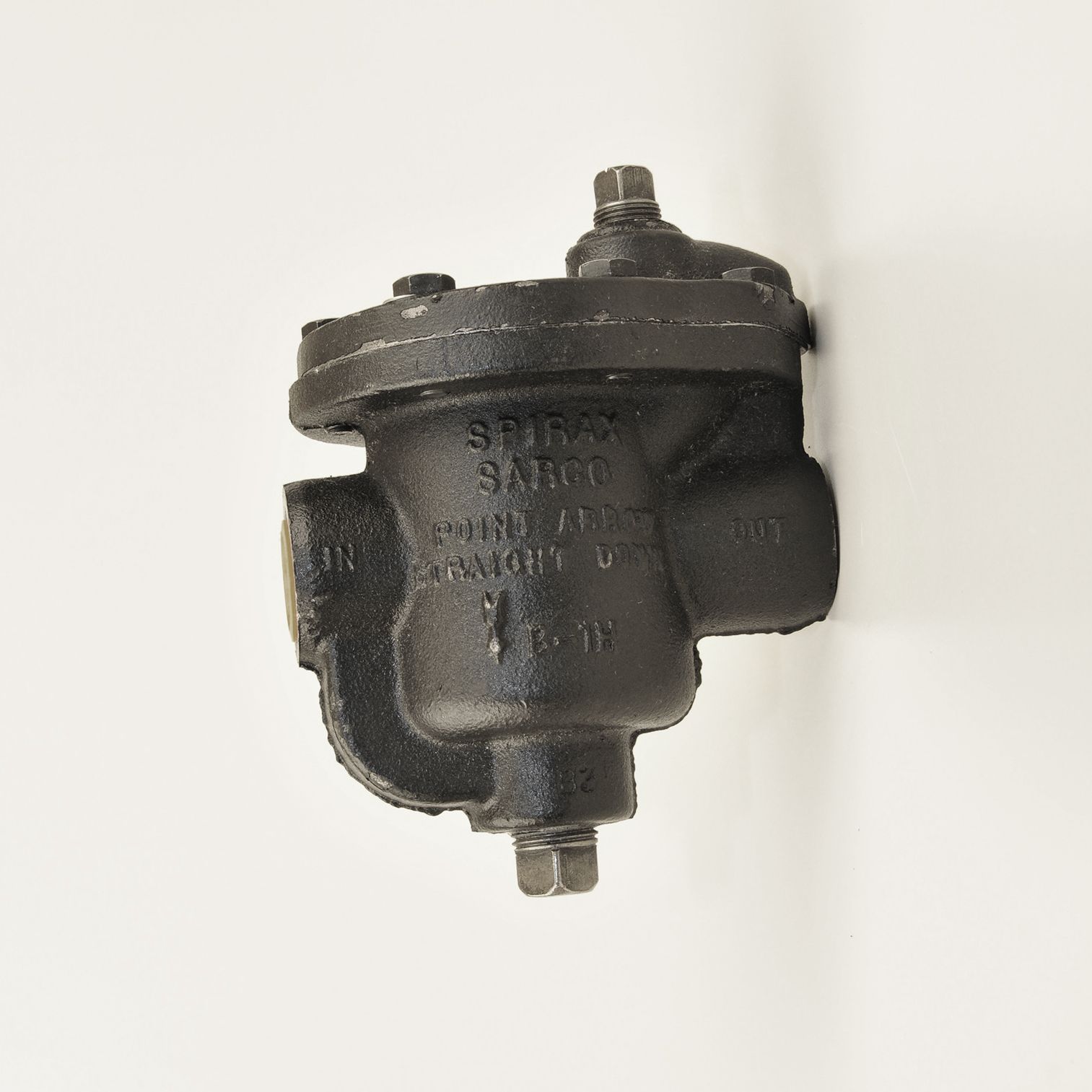

The Spirax-Sarco inverted bucket steam trap model B1H-250 has a three-quarters inch trap connection and is designed in an in-line horizontal layout. This allows steam to enter from one side while condensate exits from the other. The trap operation relies on a leverage system using the bucket's weight to open the valve against system pressure. The B1H-250 is made from cast iron and can handle a maximum pressure of two hundred fifty psi.

• Inverted bucket design for effective steam trap operation
• High resistance to wear, corrosion, and hydronic shock
• Capable of managing up to seven hundred twenty pounds of condensate per hour

Product Highlights

Ideal for heat exchange service, this steam trap efficiently vents air and non-condensable gases. Its design enables reliable performance even under light load conditions and against back pressure.

Product Information

Standard Information

• Brand: Spirax-Sarco
• MPN: 64164

Technical Specifications

• Steam Trap Type: Inverted Bucket
• Model: B1H-250
• Steam Trap Connection Size: 3/4
• Max Pressure: 250 psi
• Steam Trap Mounting: In-Line Horizontal
• Body Material: Cast Iron
• Weight: 6.30 lbs
