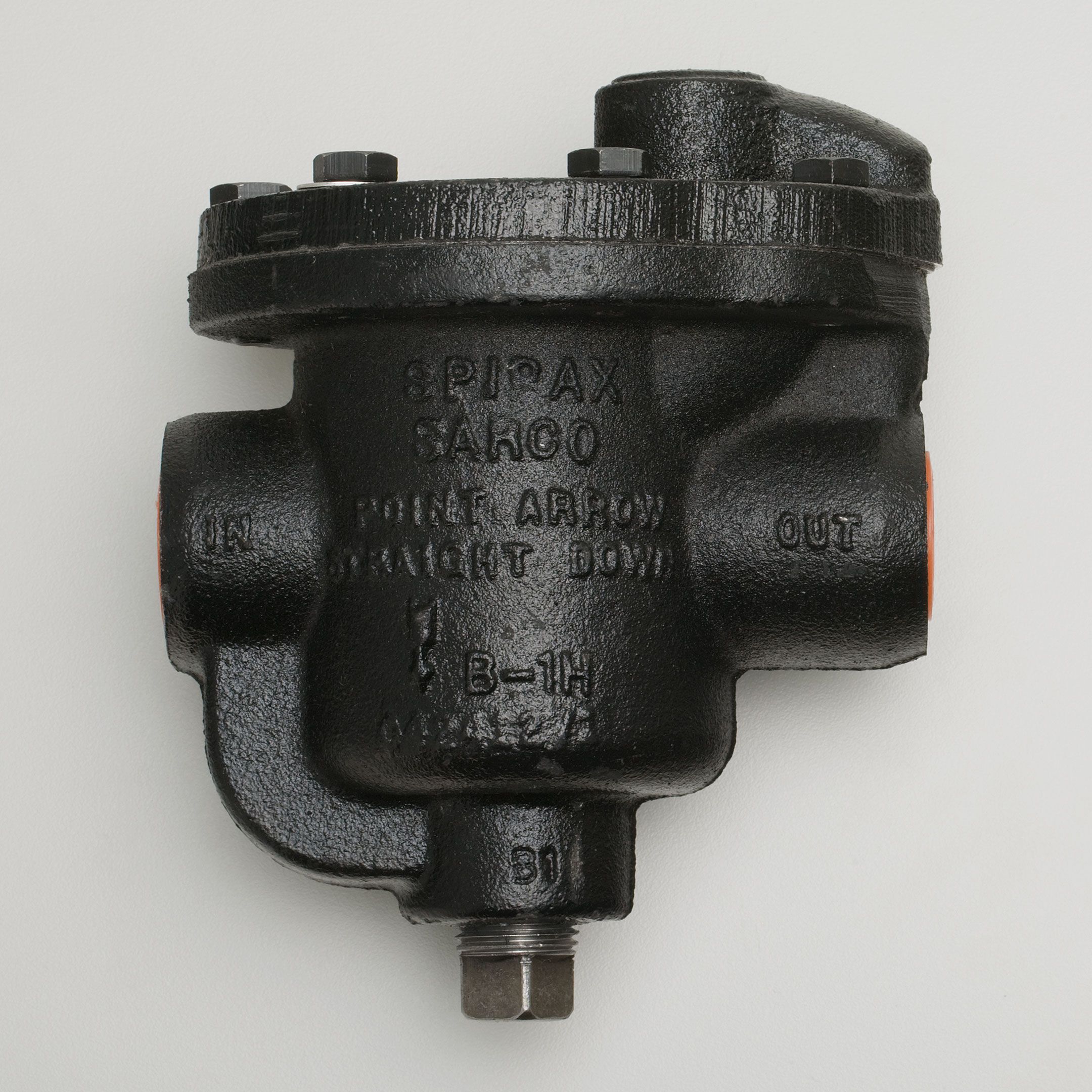

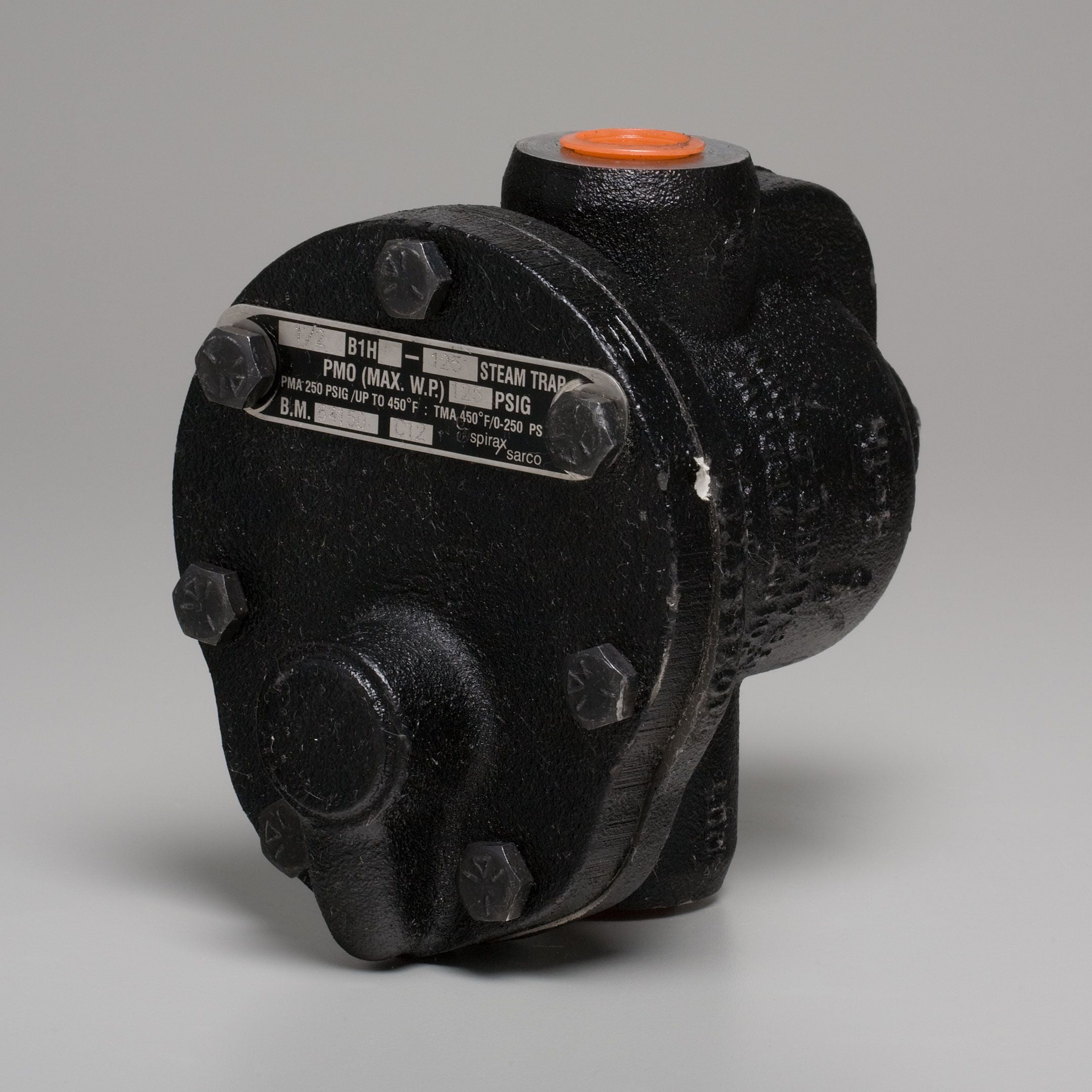

Spirax-Sarco 64150 Steam Trap B1H Inverted Bucket 1/2 Inch 125PSI Cast Iron NPT

Product Description

The Spirax-Sarco B1H-125 Steam Trap is designed with the professional in mind, featuring a robust cast iron construction and an inverted bucket mechanism that allows for efficient steam conduction and condensate removal. This model, with a 1/2 inch NPT connection, is optimized for horizontal installation, offering a maximum operating pressure of 125 PSI.

• Efficient condensate drainage with minimal steam leakage.
• Robust cast iron body, suitable for industrial applications.
• Horizontal configuration for ease of installation in varied setups.

Product Highlights

This steam trap's inverted bucket design provides reliable, long-term performance with a capacity to handle loads up to 920 pounds per hour. It is ideal for use in systems where air and non-condensable gases must be vented rapidly to maintain system efficiency.

Product Information

Standard Information

• Brand: Spirax-Sarco
• Model: B1H-125

Technical Specifications

• Connection Size: 1/2 inch NPT
• Maximum Operating Pressure: 125 PSI
• Product Type: Inverted Bucket
• Operating Capacity: 920 pounds per hour
• Body Material: Cast Iron
