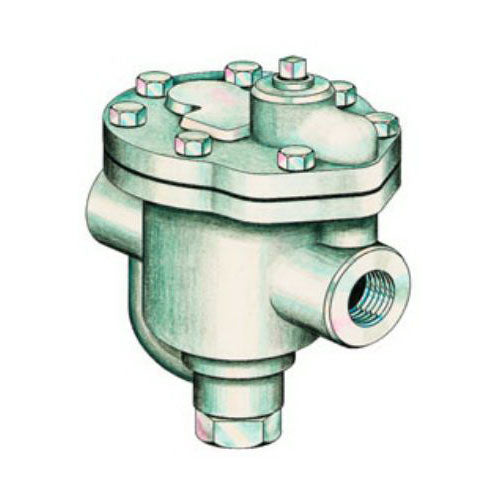

Spirax Sarco 62783 B4 Inverted Bucket Steam Trap

Product Description

The Spirax Sarco B4 Inverted Bucket Steam Trap, model number 62783, effectively manages condensate. It features an inverted bucket mechanism that responds to the density difference between steam and condensate. The trap operates cyclically, discharging condensate close to steam temperature, making it optimal for heat exchange applications. This unit is made from cast iron and is designed for reliable operation up to 180 psi and 450 degrees Fahrenheit.

• Inverted bucket mechanism for efficient condensate management.
• Operates with a maximum pressure of 180 psi.
• Constructed from durable cast iron for longevity.

Product Highlights

This steam trap is a reliable solution in steam systems, effectively venting air and non-condensable gases, while also managing dirt and providing performance under varying loads.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 62783

Technical Specifications

• Series: B Series
• Nominal Size: 1-1/4 in
• End Style: FNPT
• Length: 9.3 in
• Material: Cast Iron
• Pressure Rating: 180 psi
• Temperature Rating: 450 degrees Fahrenheit
• Weight: 40 lbs
