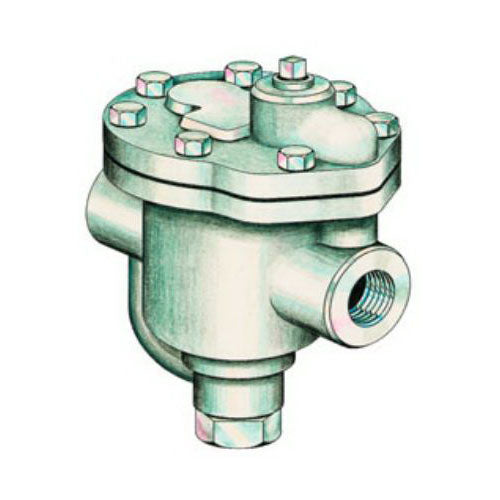

Spirax Sarco 62781 B4 Inverted Bucket Steam Trap

Product Description

The Spirax Sarco B4 Inverted Bucket Steam Trap is designed to effectively manage steam and condensate within various applications. The model number for this steam trap is 62781. It features an inverted bucket mechanism that utilizes the density difference between steam and condensate to operate efficiently. The cyclic discharge action allows condensate to be expelled close to steam temperature, optimizing performance.

• Inverted bucket design for reliable operation
• Constructed with durable cast iron material
• Compatible with FNPT connections

Product Highlights

This steam trap is part of the B Series and is ideal for applications requiring reliable steam management.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 62781

Technical Specifications

• Nominal Size: 1-1/4 in
• Length: 9.3 in
• Pressure Rating: 15 psi
• Temperature Rating: 450 deg F
• Material: Cast Iron
• Series: B Series
• End Style: FNPT
• Domestic/Import: Domestic
