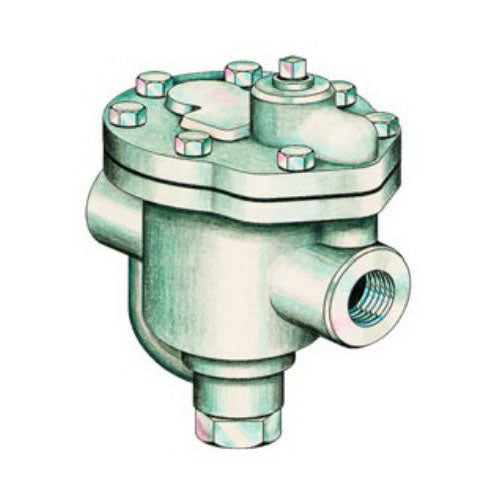

Spirax Sarco 62763 B2 Inverted Bucket Steam Trap 3/4 in

Product Description

The Spirax Sarco 62763 B2 Inverted Bucket Steam Trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic, discharging condensate close to steam temperature. It has a 3/4 in nominal size, FNPT end style, and a 250 psi pressure rating. The trap is made of cast iron and suitable for inline horizontal piping configuration.

• Maximum allowable pressure of 250 psig at 450 deg F
• Maximum allowable temperature of 450 deg F at 0 to 250 psig
• Inverted bucket mechanism responds to the difference in density between steam and condensate

Product Highlights

The Spirax Sarco inverted bucket steam trap is designed for efficient condensate removal in steam systems, offering durability and optimal performance.

Product Information

Standard Information

• Brand: SPIRAX SARCO
• Manufacturer Part Number: 62763

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Length: 6.6 in
• Material: Cast Iron
• Nominal Size: 3/4 in
• Pressure Rating: 250 psi
• Series: B Series
• Temperature Rating: 450 deg F
• Width: 5.3 IN
• Flow Pattern: In-Line
• Steam Trap Type: Inverted Bucket
• Model: B2-250
• Steam Trap Connection Size: 3/4"
• Max Pressure: 250 psi
• Steam Trap Mounting: In-Line Horizontal
• Body Material: Cast Iron
