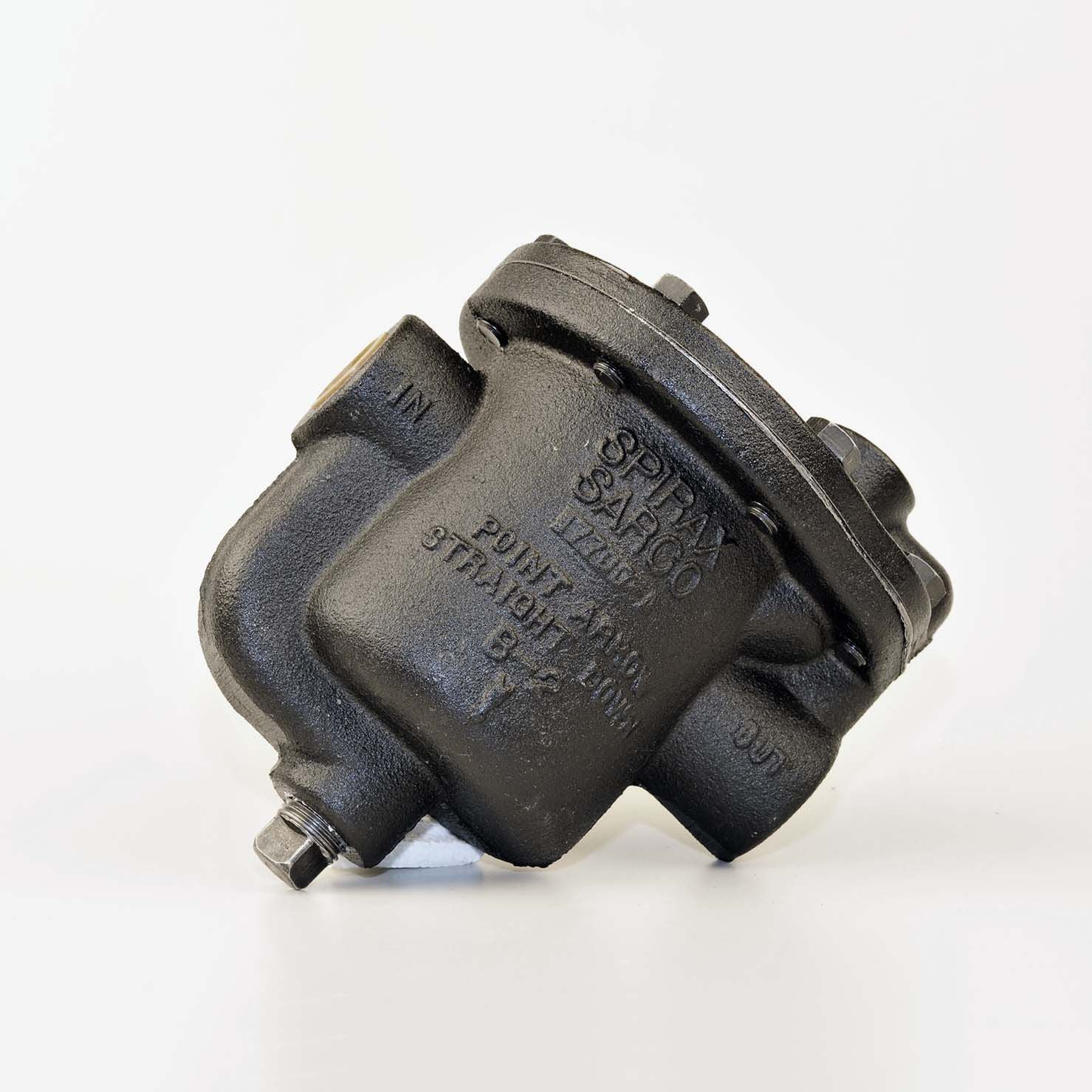

Spirax Sarco 62762 B2-125 3/4 Inch 125 PSI Cast Iron Steam Trap

Product Description

The Spirax Sarco B2-125 cast iron steam trap model 62762 is engineered to handle high pressure and temperature steam applications efficiently. This 3/4 inch in-line horizontal configuration steam trap operates at a maximum pressure of 125 psi, capable of managing up to 2,240 pounds per hour of condensate.

• Robust cast iron construction for high durability.
• Simple leverage mechanism for valve operation.
• High resistance against wear, corrosion, and hydraulic shocks.

Product Highlights

Featuring a unique inverted bucket operational design, this steam trap ensures optimal air venting and quick response to changes in steam pressure, which enhances its reliability and efficiency in industrial settings.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 62762
• Type: Inverted Bucket Steam Trap
• Material: Cast Iron

Technical Specifications

• Connection Size: 3/4 inch
• Max Pressure: 125 psi
• Capacity: 2,240 lbs/hour
• Mounting: In-Line Horizontal
